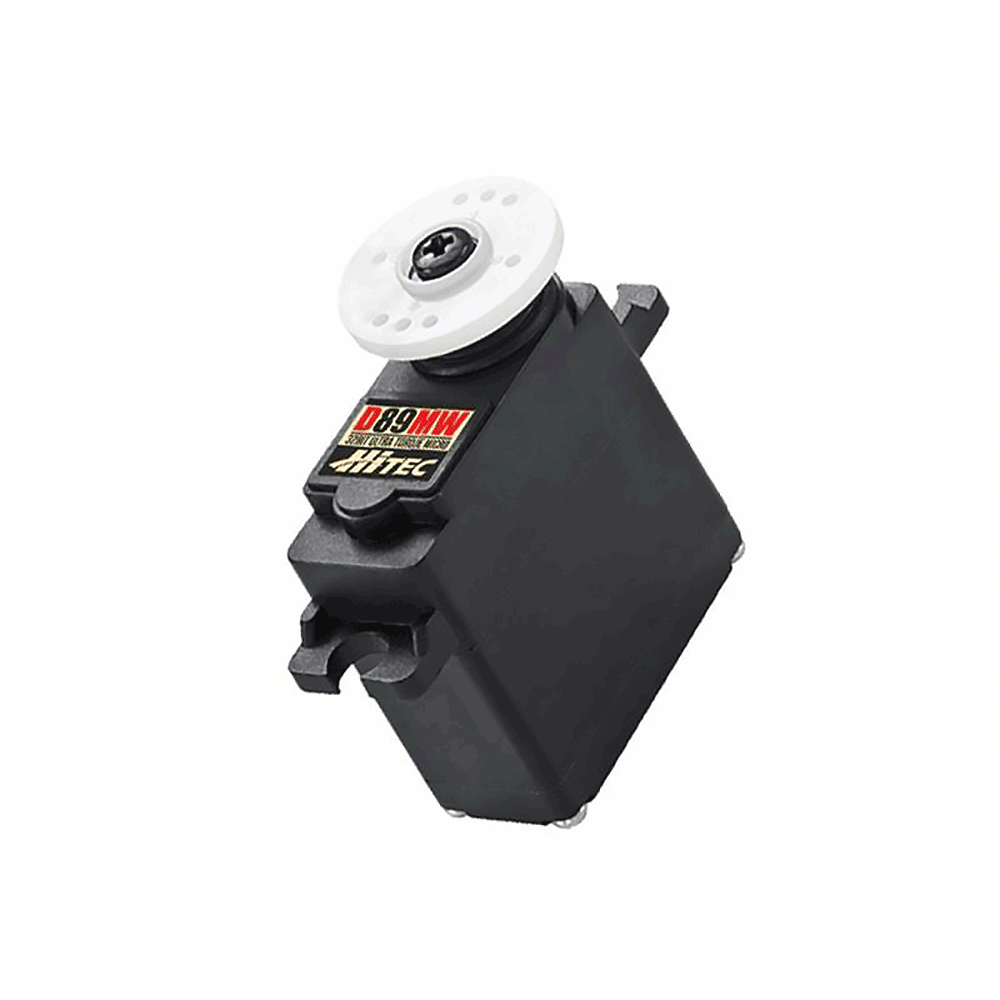

D89MW 25g Metal Gear 25T Tooth Digital Micro Servo

$69.99
Part #:
36089S

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this micro servo a standout in its class. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D89MW allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

  • Ideal for 3D airplanes where size and weight are a factor without sacrificing performance.

D89MW Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.11
Maximum Torque Range oz. / in. 74 ~ 118
Maximum Torque Range kg. / cm. 5.3 ~ 8.5
Current Draw at Idle 30 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 2,900 mA
Dead Band Width N / A

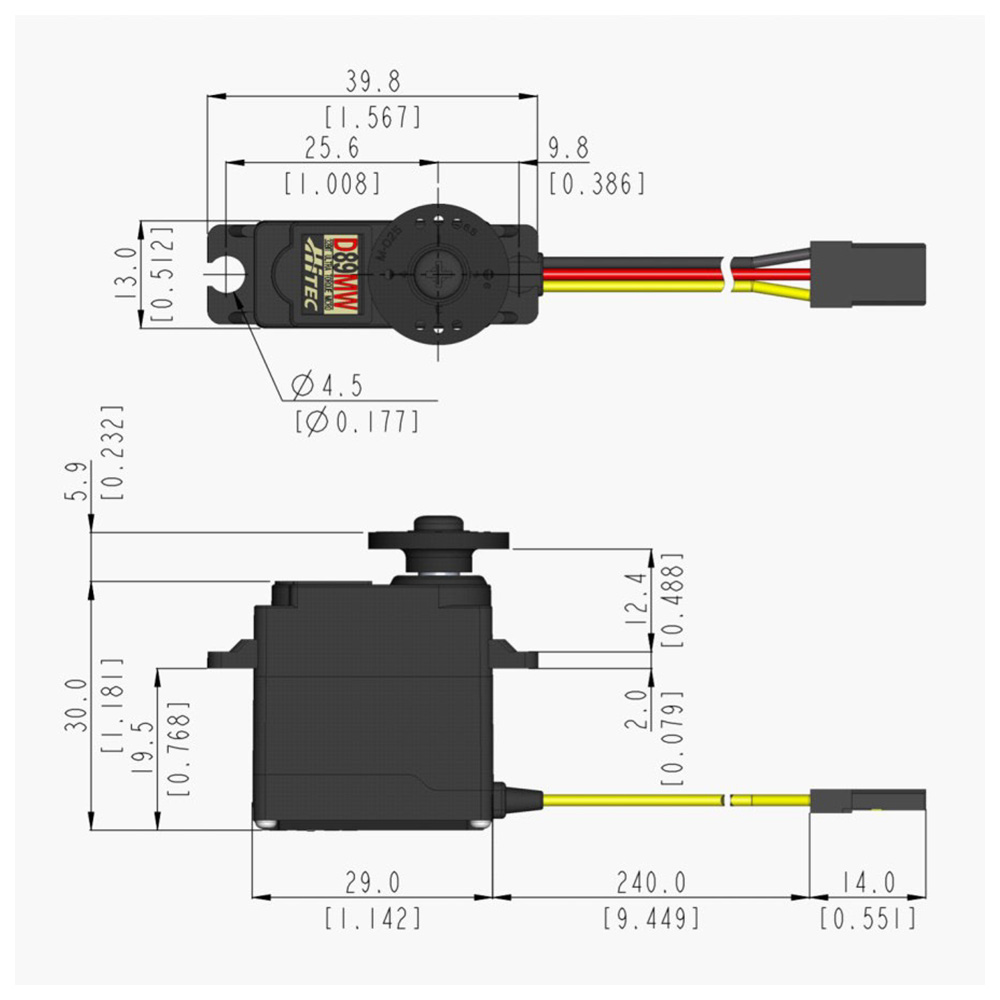

Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.88
Weight (Gram) 25.0
Circuit Type 32bit Programmable Digital
Motor Type Coreless Metal Brush
Gear Material 5 Metal Gears
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count N / A
Radio Control Applications
Parkflyer < 50 oz.
Sport Plane 42 - 50 oz.
Sailplane < 2 meters and up
3D Performance N / A
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/16th
Monster Truck N / A
Buggies 1/16th
Truggies N / A
Short Course / Truck 1/16th
Crawlers N / A
Sail Boat N / A
Power Boat 1/16th
