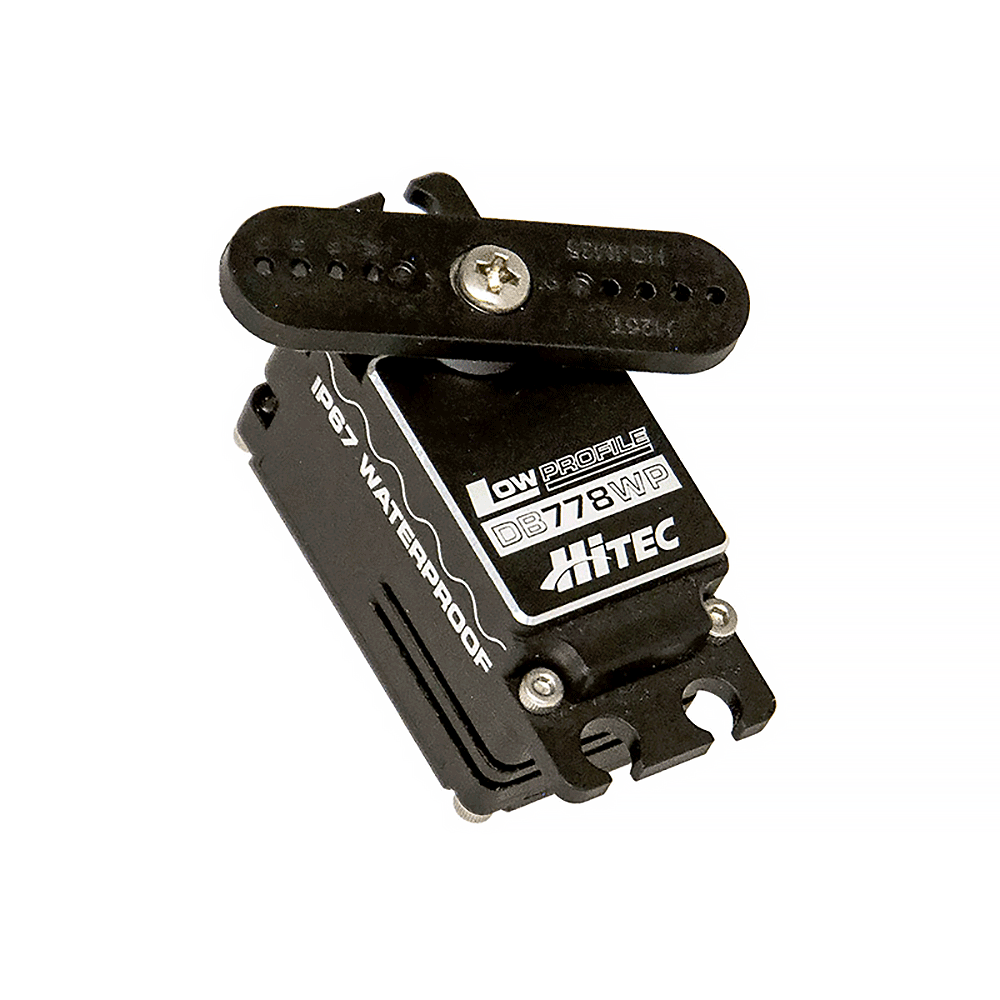

The DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks. Take on the competition and drive hard, knowing you are backed by Hitec’s 2-year warranty which affords you the added protection you deserve! Invest in the best with Hitec!
FEATURES
- Voltage Range is 3.7V - 8.4V
- Full Programmability
- IP-67 Waterproof Rated
- Ultra Efficient Brushless Motor
- 32-Bit MCU Technology / 4096 Resolution
- Smart Sense Technology for Servo Analytics
- High Response, High Resolution Circuitry
- Full Metal Case
- Hardened Steel Gears
- 1M Cycle, Long-Life Potentionmeter
- H25T -Industry Standard Output Spline
- Compatible with Fully Charged 2S LiPo Batteries
DB778WP Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 3.7V ~ 8.4V |
| Speed (Second @ 60°) | 0.08 @ 8.4V |
| Maximum Torque Range oz. / in. | 283.56 @ 8.4V |
| Maximum Torque Range kg. / cm. | 20.41 @ 8.4V |
| Current Draw at Idle | 28mA @ 7.4V |
| No Load Operating Current Draw | 600mA @ 7.4V |
| Stall Current Draw | 5,500mA @ 7.4V |
| Dead Band Width | 1usec |
| Physical Specifications | |

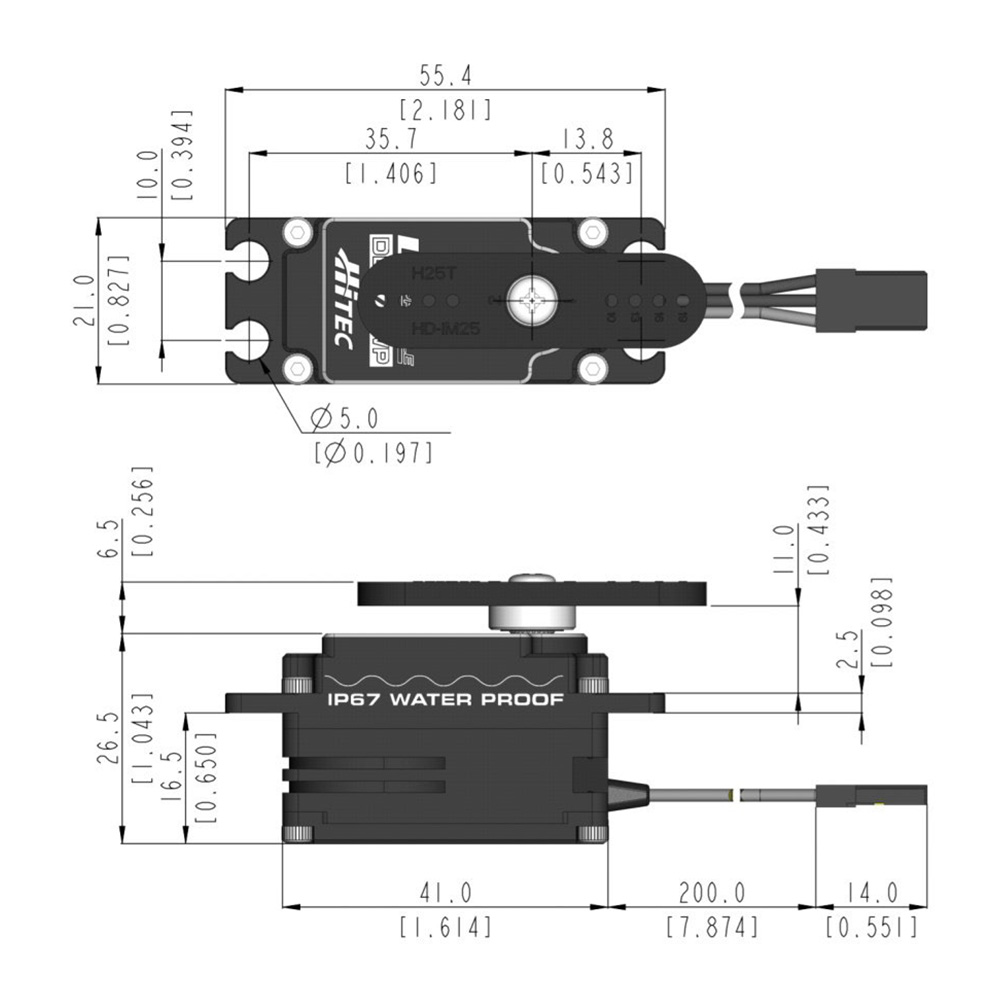

| Dimensions (Inches) | 1.61 x 0.82 x 1.04 in. |
| Dimensions (Metric) | 41.0 x 21.0 x 26.5 |
| Weight (Ounces) | 2.40 |
| Weight (Gram) | 68.0 |
| Circuit Type | 32bit Programable Digital |
| Motor Type | Brushless |
| Gear Material | 5 Steel Gears |
| Bearing Type | Brushless |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Aluminum |
| Dust / Water Resistance | IP-67 Rated |
| Connector Gauge (AWG) / Strand Count | 20AWG |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | N / A |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N/A |
| Gas Helicopter | N/A |
| On Road | 1/10th |
| Monster Truck | N/A |
| Buggies | 1/10th |
| Truggies | N/A |
| Short Course / Truck | N/A |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | N / A |
