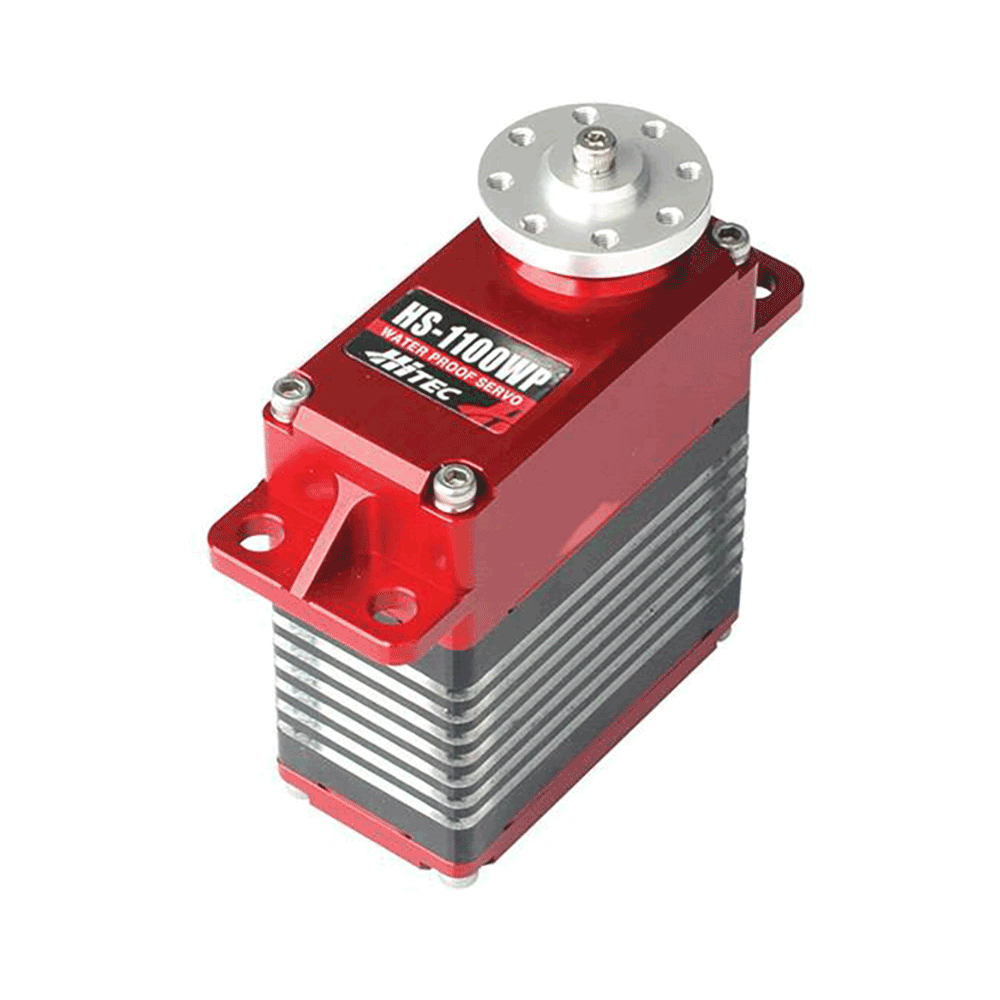

HSI-1100WP Aluminum Case Waterproof 15T Digital Large Scale Servo

$549.99
Part #:
34110S

Giant scale servos, watch out! Our HS-1100WP waterproof, heavy-duty digital giant brings out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to our giant servo line has Hitec's unrivaled industrial digital circuitry and engineering. Your world just got BIGGER with the introduction of the HS-1100WP!

Features

  • Non-programmable, Industrial Digital Circuitry
  • EMI-shielded Cases
  • *International Protection Code 67 Rating
    (6=Dust Tight; Complete Protection Against Contact 7) – Immersion up to 1 meter
  • Durable Steel Gears
  • 14.8V 2-Cell LiPo Capability
  • 5-Pole Carbon Brushed Motor

HS-1100WP Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 11.1V ~ 14.8V
Speed (Second @ 60°) 0.26 ~ 0.19
Maximum Torque Range oz. / in. 1167 ~ 1528
Maximum Torque Range kg. / cm. 84 ~ 110
Current Draw at Idle 130 mA
No Load Operating Current Draw 1,300 mA
Stall Current Draw 6,500 mA
Dead Band Width 2 µs

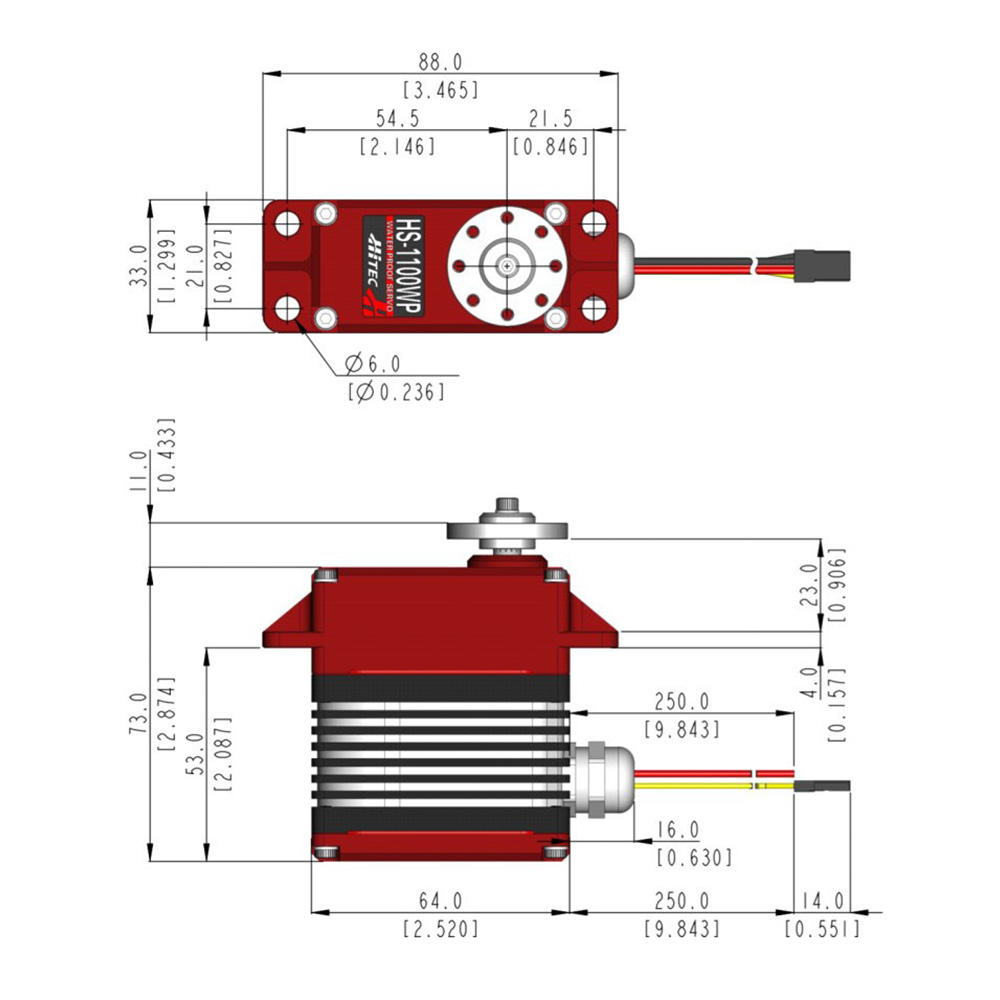

Physical Specifications
Dimensions (Inches) 2.52 x 1.30 x 2.87
Dimensions (Metric) 64.0 x 33.0 x 73.0
Weight (Ounces) 12.80
Weight (Gram) 363.0
Circuit Type DIgital Amplifier with Mosfet Drive
Motor Type 5 Poles Cored Metal Brushless
Gear Material Steel
Bearing Type Quad Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material CNC Aluminum
Dust / Water Resistance IP 67
Connector Gauge (AWG) / Strand Count 20 / 80
Radio Control Applications
Parkflyer N / A
Sport Plane >40%
Sailplane N / A
3D Performance N / A
Scale >40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/4th & 1/5th
Monster Truck 1/4th & 1/5th
Buggies 1/4th & 1/5th
Truggies 1/4th & 1/5th
Short Course / Truck 1/4th & 1/5th
Crawlers N / A
Sail Boat N / A
Power Boat N / A

LIMITED WARRANTY

SERVO Warranty: For a period of two years or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.

THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.

Service and Repair

Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.

Phone: (858) 748-6948
Email: service@hitecrcd.com

For service or repair of your Hitec products follow the instructions below:

Print the Hitec Service Request Form

  • Fill it out in its entirety, being as comprehensive as possible.
  • Package your return just as it was packed when you purchased it.
  • Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase

Ship your return, using a prepaid, traceable method to our new address:

Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123


  • Once received, if an email address is provided, we will email a shipment notification with a reference number.
    Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department.
  • Our goal is to ship your repair back out within 7-10 business days from the day we get it.
    Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is.
  • If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
  • Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
