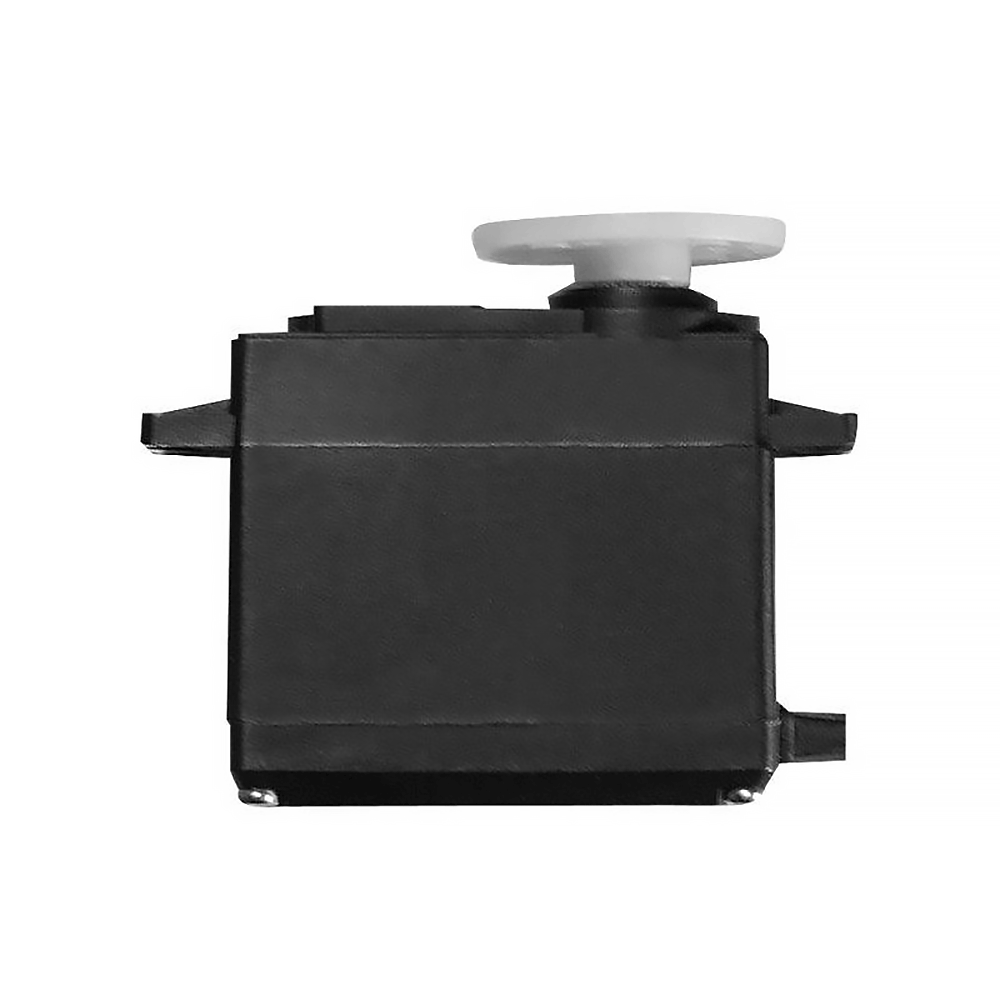

Featuring the industry standard 25-tooth output spline with 3mm hex screw, and metal gears for maximum durability, our new HS-628MG is the 25-tooth version of our powerful high-speed HS-625MG and the perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-628MG is a fantastic sport servo for larger planes and 1/10th scale sport vehicles.
Features
- Affordable High Speed Metal Gear Servo
- Cored Metal Brush Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
HS-628MG Servo Specifications
Performance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
Speed (Second @ 60°) | 0.18 ~ 0.15 |
Maximum Torque Range oz. / in. | 74 ~ 94 |
Maximum Torque Range kg. / cm. | 5.5 ~ 6.8 |
Current Draw at Idle | 9.1 mA |
No Load Operating Current Draw | 500 mA |
Stall Current Draw | 2,500 mA |
Dead Band Width | 8 µs |
Physical Specifications | |
Dimensions (Inches) | 1.59 x 0.77 x 1.48 |
Dimensions (Metric) | 40.6 x 19.8 x 37.8 |
Weight (Ounces) | 1.95 |
Weight (Gram) | 55.2 |
Circuit Type | Analog |
Motor Type | Cored Metal Brush |
Gear Material | Metal |
Bearing Type | Dual Ball Bearing |
Output Shaft (type / Ømm) | Standard 24 |
Case Material | Plastic |
Dust / Water Resistance | N / A |
Connector Gauge (AWG) / Strand Count | 22 / 60 |
Radio Control Applications | |
Parkflyer | N / A |
Sport Plane | 4-12 lbs. |
Sailplane | 2 meters and up |
3D Performance | 4-12 lbs. |
Scale | 4-12 lbs. |
Electric Helicopter | 600mm |
Gas Helicopter | 50-59 Class |
On Road | 1/10th |
Monster Truck | 1/10th |
Buggies | 1/10th |
Truggies | 1/10th |
Short Course / Truck | 1/10th |
Crawlers | 1/10th |
Sail Boat | =>1M+ & Scale |
Power Boat | 1/10th |
