The HS-788HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft and 25 tooth spline, the HS-788HB will provide years of reliable service.
Features
- Large Drum Wheel with 3.5 Revolutions of Travel
- 25-Tooth Output Spline
- Strong Karbonite Gear Train
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust-Resistant Case
| General Specifications | |||
| Operating Voltage Range | 3.5 ~ 6.8V | ||
| Voltage | 4.8V | 6.0V | - |
| No Load Speed | 1.68sec/360Ëš | 1.38sec/360Ëš | - |
| Stall Torque | 11.0kgf·cm (152.76 oz·in) | 13.2kgf·cm (183.31 oz·in) | - |
| Peak Efficiency Torque | 2.2kgf·cm (30.6 oz·in) | 2.6kgf·cm (36.1 oz·in) | - |
| Standing Current | 8mA | 8mA | - |
| No Load Running Current | 230mA | 250mA | - |
| Stall Current | 1,500mA | 1,800mA | - |
| Deadband | 5μs | 5μs | - |
| Continuous Rotation | n / a | ||
| Connector Wire Length | 300mm (11.811 in.) | ||
| Connector Wire Gauge | 22AWG | ||

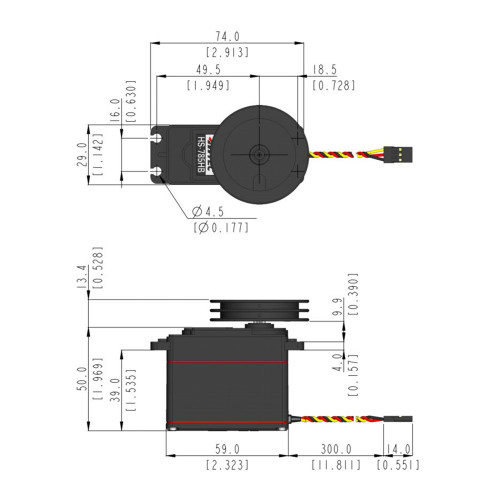

| Dimensions | 59.0 x 29.0 x 50.0mm (2.323 x 1.142 x 1.969 in.) | ||
| Weight | 110.0g (3.880oz) | ||
| Motor Type | Cored Metal Brush | ||
| Bearing Type | 2 Ball Bearing | ||
| Case Material | Engineering Plastic | ||
| Gear Material | 4 Heavy Duty Gears | ||
| Horn Gear Spline | 25T (Ø6.0) | ||
| IP-Rating | IP54 | ||
| Servo Amplifier Type | Analog Contorller | ||
| Radio Control Applications | |||
| Parkflyer | n / a | ||
| Sport Plane | n / a | ||
| Sailplane | n / a | ||
| 3D Performance | n / a | ||
| Giant / Large Scale | n / a | ||
| On Road | n / a | ||
| Monster Truck | n / a | ||
| Buggy | n / a | ||
| Truggy | n / a | ||
| Short Coarse / Truck | n / a | ||
| Crawler | n / a | ||
| Electric Heli | n / a | ||
| Gas Heli | n / a | ||
| Sail Boat | ≥ 1 Meter & Scale | ||
| Power Boat | 1/10th | ||
