This is the Hitec HSB-9360TH High Speed Brushless Titanium Gear Servo. Pro level hobbyists demand the power and precision found in Hitec's HSB-93XX servos. With lightweight and durable titanium gears, combined with efficient and powerful Neu brushless motors the HSB-9360TH delivers lightning fast response that is a perfect match for 3D helicopters.
Features:
- Programmable 12 Bit Digital Circuit: Using the DPC-11 PC interface and downloadable software, users can program a variety of features in the HSB-9XXX Series including: Fail Safe On/Off and Position, direction, EPA, Speed (Slower), Dead Band, and Soft Start.
- Power Efficient Brushless Motor Controller: The HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit* which puts power back into the battery as the motor slows. This feature, combined with ultra low current draw under sustained loads, allows these brushless servos to consume 1/5 the power of most other brushless servos on the market today.
- Custom NeuMotor: Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
- Constant Torque Output: Thanks to the revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
- Hybrid MPD 1st Gear: The unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
- Industry-Leading Titanium Gear Train: Hitec was the first manufacturer to utilize low wear Titanium gears in their servos and continues to be the leader in Titanium gear technology.
- 25-Tooth Standard Spline: These Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with a wide range of aftermarket servo horns.
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
| General Specifications | |||
| Operating Voltage Range | 4.0 ~ 8.4V | ||
| Voltage | - | 6.0V | 7.4V |
| No Load Speed | - | 0.08sec/60Ëš | 0.06sec/60Ëš |
| Stall Torque | - | 17.0kgf·cm (236.0 oz·in) | 17.0kgf·cm (236.1 oz·in) |
| Peak Efficiency Torque | - | 3.4kgf·cm (47.2 oz·in) | 3.4kgf·cm (47.2 oz·in) |
| Standing Current | - | 27mA | 27mA |
| No Load Running Current | - | 250mA | 250mA |
| Stall Current | - | 2,700mA | 2,100mA |
| Deadband | - | 1μs | 1μs |
| Continuous Rotation | n / a | ||
| Connector Wire Length | 300mm (11.811 in.) | ||
| Connector Wire Gauge | 20AWG | ||

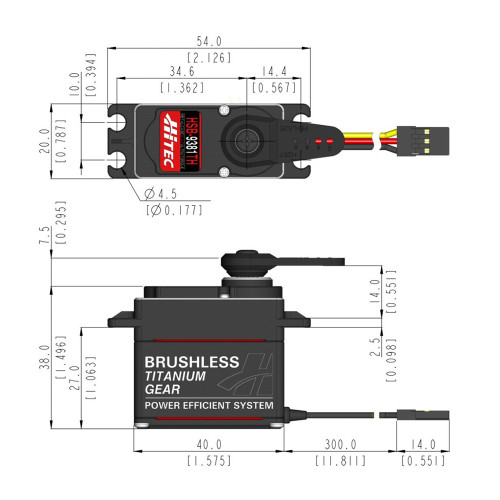

| Dimensions | 40.0 x 20.0 x 38.5mm (1.575 x 0.787 x 1.516 in.) | ||
| Weight | 68.0g (2.399oz) | ||
| Motor Type | Brushless (BLDC) | ||
| Bearing Type | 2 Ball Bearing | ||
| Case Material | Engineering Plastic & Aluminum Heat Sink | ||
| Gear Material | 1 Metal+Plastic & 3 Titanium Alloy Gears | ||
| Horn Gear Spline | 25T (Ø6.0) | ||
| IP-Rating | IP54 | ||
| Servo Amplifier Type | 16bit Programmable Digital | ||
| Radio Control Applications | |||
| Parkflyer | n / a | ||
| Sport Plane | 12-15 lbs. | ||
| Sailplane | 2 Meters and up | ||
| 3D Performance | 12-15 lbs. | ||
| Giant / Large Scale | 12-15 lbs. | ||
| On Road | 1/10th & 1/8th | ||
| Monster Truck | 1/10th & 1/8th | ||
| Buggy | 1/10th & 1/8th | ||
| Truggy | 1/10th & 1/8th | ||
| Short Coarse / Truck | 1/10th & 1/8th | ||
| Crawler | n / a | ||
| Electric Heli | > 700 | ||
| Gas Heli | 50 - 90+ | ||
| Sail Boat | n / a | ||
| Power Boat | n / a | ||
