HSR-2648CR Robotic Continuous Rotation 25T Digital Servo

$32.99
Part #:
32648CR

Expanding on the durable and responsive power of the HSR-1425CR continuous rotation servo, we have developed the digital HSR-2648CR. This 25 Tooth, non-proportional, continuous rotation servo delivers the commanding force you require, with intense, powerful torque, wide voltage capability and Hitec’s impressive metal gear train. Responsive high speed motion and quick directional shifts make this the go-to servo for your most complex and specialized applications. Its programmability and "all-in" solid build will have radio control, robotic and engineering enthusiasts cheering. Continuous performance by Hitec!

Features

  • Digital Circuit with Directional Programmability
  • 25-Tooth Output Spline
  • Linear Speed Control
  • Quick Directional Shift
  • Low Dead Band for Precise Control
  • Wide Input Voltage Range


HSR-2648CR Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (RPM) 48 ~ 58 ~ 72
Maximum Torque Range oz. / in. 111 ~ 139 ~ 167
Maximum Torque Range kg. / cm. 8.0 ~ 10.0 ~ 12.0
Current Draw at Idle X mA
No Load Operating Current Draw XXX mA
Stall Current Draw XXX mA
Dead Band Width XX µs

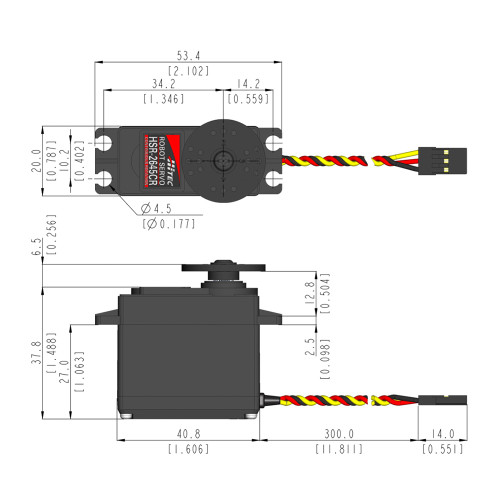

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 1.90
Weight (Gram) 53.0
Circuit Type XXXXXX
Motor Type XXXXXX
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) XXXX
Case Material XXXX
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count XX / XX
