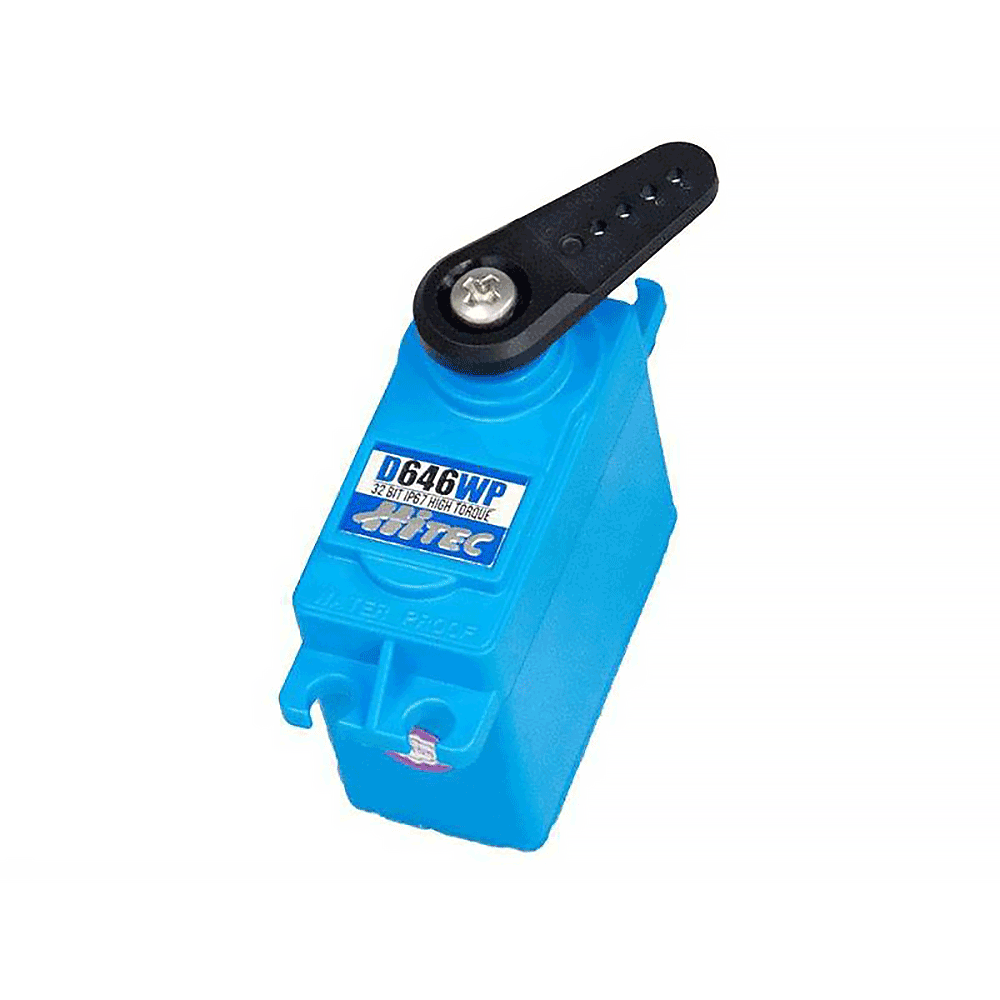

D646WP Waterproof Metal Gear 25T Digital Sport Servo

$59.99
Part #:
36646S

Our D464WP waterproof servo has what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67 rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease.

Features

  • Industry's First IP67-Rated Waterproof Case
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP First Gear
  • Dual Ball Bearing-Supported Output Shaft
  • 7.4v 2-Cell LiPo Capability
  • Standard Programmable Digital Circuitry

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

D646WP Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 3.5 ~ 8.4V
Speed (Second @ 60°) 0.16 @ 7.4V
Maximum Torque Range oz. / in. 161.09 @ 7.4V
Maximum Torque Range kg. / cm. 11.6 @ 7.4V
Current Draw at Idle 30 mA @ 7.4V
No Load Operating Current Draw 330 mA @ 7.4V
Stall Current Draw 2,200 mA @ 7.4V
Dead Band Width 2 µs

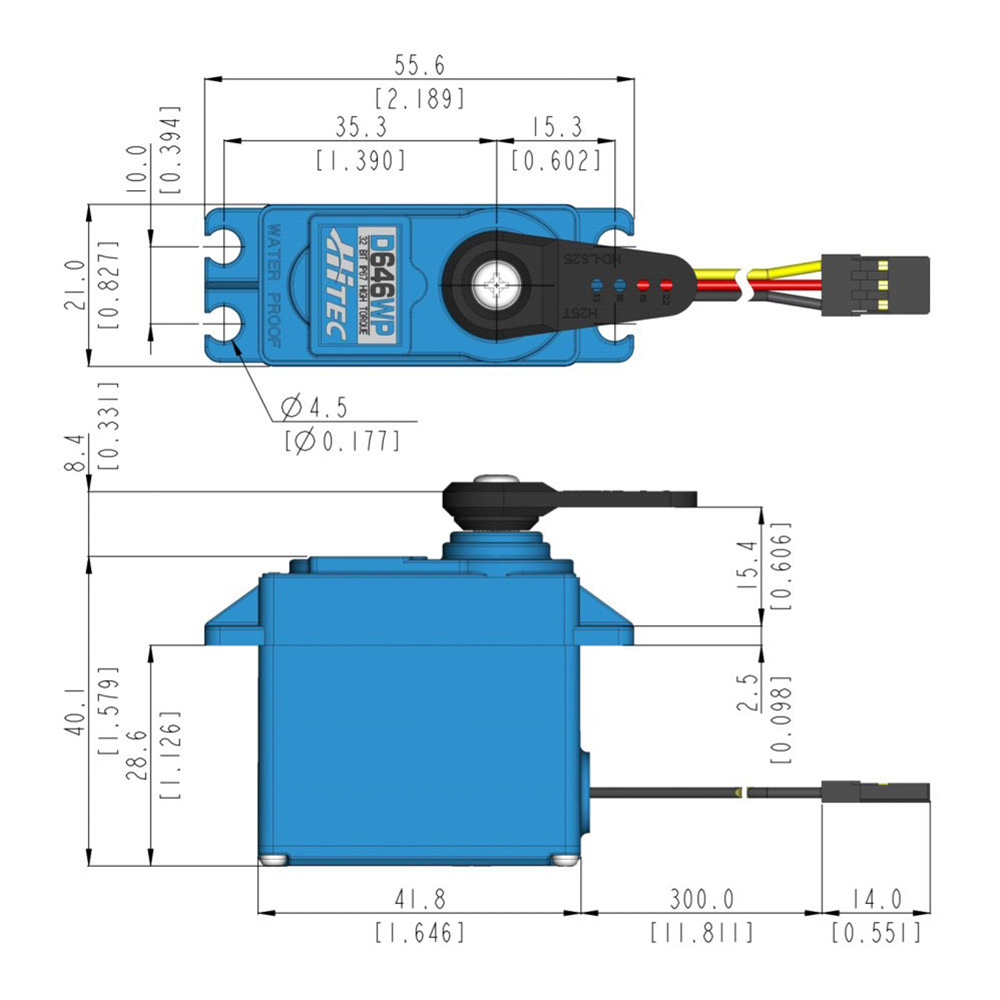

Physical Specifications
Dimensions (Inches) 1.65 x 0.83 x 1.58
Dimensions (Metric) 41.8 x 21.0 x 40.0
Weight (Ounces) 2.15
Weight (Gram) 61.0
Circuit Type G1 Programable Digital
Motor Type Cored Carbon Brush
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 25
Case Material Engineering Plastic
Dust / Water Resistance IP 67
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meter and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers N / A
Sail Boat = >1 meter & Scale
Power Boat 1/10th

LIMITED WARRANTY

SERVO Warranty: For a period of two years or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.

THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.

Service and Repair

Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.

Phone: (858) 748-6948
Email: service@hitecrcd.com

For service or repair of your Hitec products follow the instructions below:

Print the Hitec Service Request Form

  • Fill it out in its entirety, being as comprehensive as possible.
  • Package your return just as it was packed when you purchased it.
  • Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase

Ship your return, using a prepaid, traceable method to our new address:

Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123


  • Once received, if an email address is provided, we will email a shipment notification with a reference number.
    Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department.
  • Our goal is to ship your repair back out within 7-10 business days from the day we get it.
    Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is.
  • If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
  • Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
