HSB-9380TH High Torque Titanium Gear 25T Digital Brushless Servo w/PAD

$189.99
SKU:
39383S
Availability:
WHere does the availability text show up?

With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-9380TH servo is the perfect match for the most discriminating pilots and racers.

Features

  • Programmable 12-Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25-Tooth Output Spline
  • Hybrid Nylon Reinforced Plastic and Aluminum Case
  • Low Power Consumption

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Data Save / Load
  • Program Reset (From File)

HS-9380TH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 472
Maximum Torque Range kg. / cm. 34
Current Draw at Idle 27 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 2,100 mA
Dead Band Width 1 µs

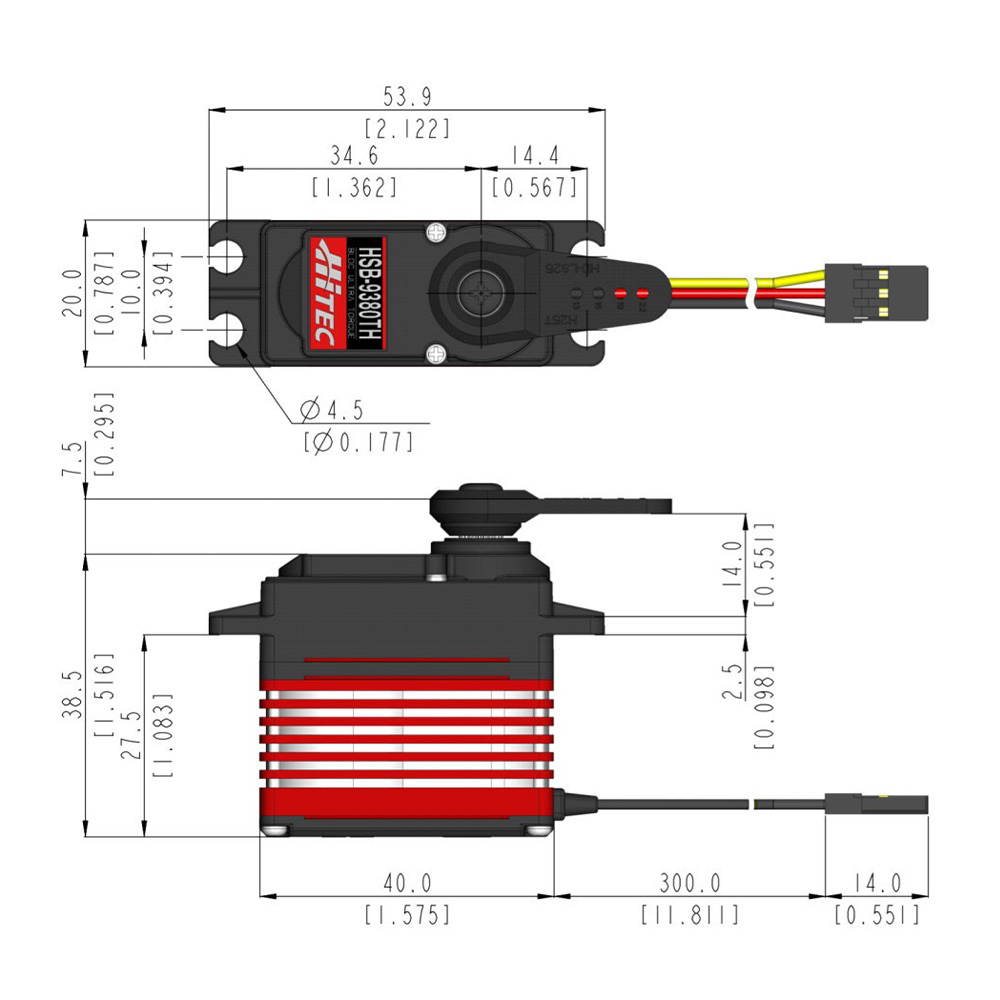

Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type EBL Digital
Motor Type Brushless
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80
Radio Control Applications
Parkflyer N / A
Sport Plane > 40%
Sailplane 2 meters and up
3D Performance > 40%
Scale > 40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck 1/8th
Buggies 1/8th
Truggies 1/8th
Short Course / Truck 1/8th
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/10th
