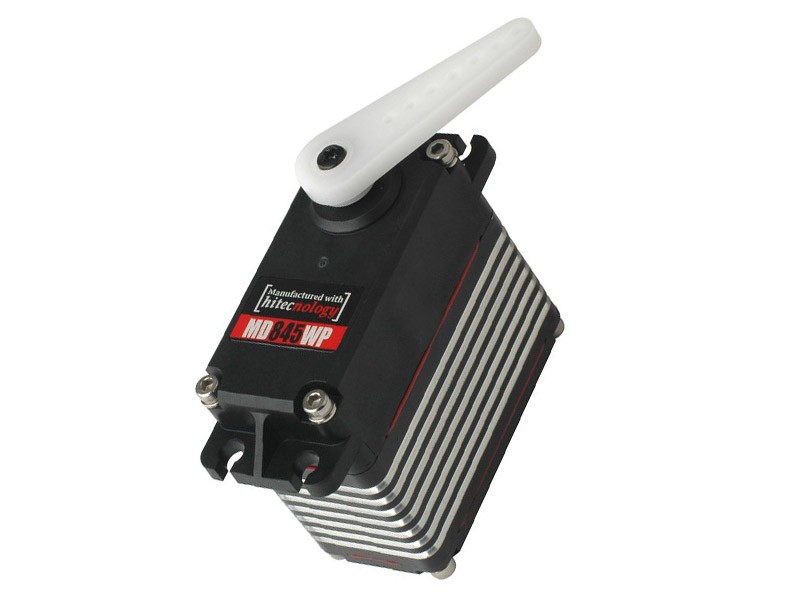

MD845WP Magnetic Encoder Waterproof Steel Gear 15T Digital Servo

$145.00
Part #:
40845S

The MD845WP servo is a IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for commercial applications thanks to is contactless magnetic encoder. As with our entire “MD” line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for your radio control needs including 1/5th-scale Rock Crawlers and Off-Road Trucks. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing MD845WP produces the mighty torque and reliability required to take bashers to the next level.

Features

  • High Resolution 32-bit Programmable PWM Digital Circuit
  • PWM & TTL Protocol Capability
  • Magnetic Encoder Position Sensor
  • Wide Operating Voltage (3.5 ~ 8.4V)
  • Heavy-Duty, Long Life Motors
  • IP-4X Rated Cases
  • 25 Tooth Output Shaft

Parts and Accessories

  • Replacement Gear Set
  • Replacement Case Set
  • Applicable Horns and Mounting Hardware

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset



MD845WP General Specifications

Control System: PWM/TTL (Half Duplex)

Position Sensor Type Contactless: Magnetic Encoder

Operating Voltage Range: 3.5 ~ 8.4V

Voltage: @ 4.8V

  • No Load Speed: 0.26sec/60Ëš
  • Stall Torque: 32.5kgf·cm (451.34oz·in)
  • Peak Efficiency Torque: 6.5kgf·cm (90.27oz·in)
  • Standing Current: 30mA
  • No Load Running Current: 1,100mA
  • Stall Current: 6,000mA
  • Deadband: 2μs

Voltage: @ 6.0V

  • No Load Speed: 0.21sec/60Ëš
  • Stall Torque: 40.5kgf·cm (562.44oz·in)
  • Peak Efficiency Torque: 8.1kgf·cm (112.49oz·in)
  • Standing Current: 30mA
  • No Load Running Current: 1,250mA
  • Stall Current: 7,000mA
  • Deadband: 2μs

Voltage: @ 7.4V

  • No Load Speed: 0.17sec/60Ëš
  • Stall Torque: 50.0kgf·cm (694.37oz·in)
  • Peak Efficiency Torque: 10.0kgf·cm (138.87oz·in)
  • Standing Current: 30mA
  • No Load Running Current: 1,600mA
  • Stall Current: 10,000mA
  • Deadband: 2μs

Connector Wire Length: 300mm (9.449inch)

Connector Wire Gauge: 20AWG

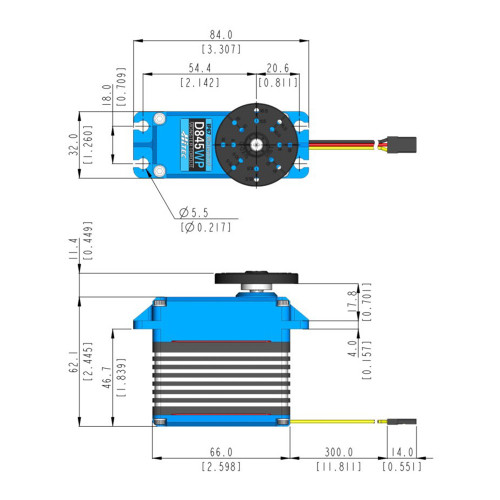

Dimensions: 66.0mm x 32.0mm x 62.1mm (2.598inch x 1.260inch x 2.445inch)

Weight: 228.9g (8.074oz) - Excluding the weight of Horn

Bearing Type: 2 Ball Bearing

Case Material: Engineering Plastic

Gear Material: 1 Metal-Plastic & 4 Steel Gears

Gear Train Backlash: Max 0.5Ëš

Horn Gear Spline: 15T(Ø8)

IP-Rating: IP67

Servo Amplifier Type: 32bit Programmable Digital
