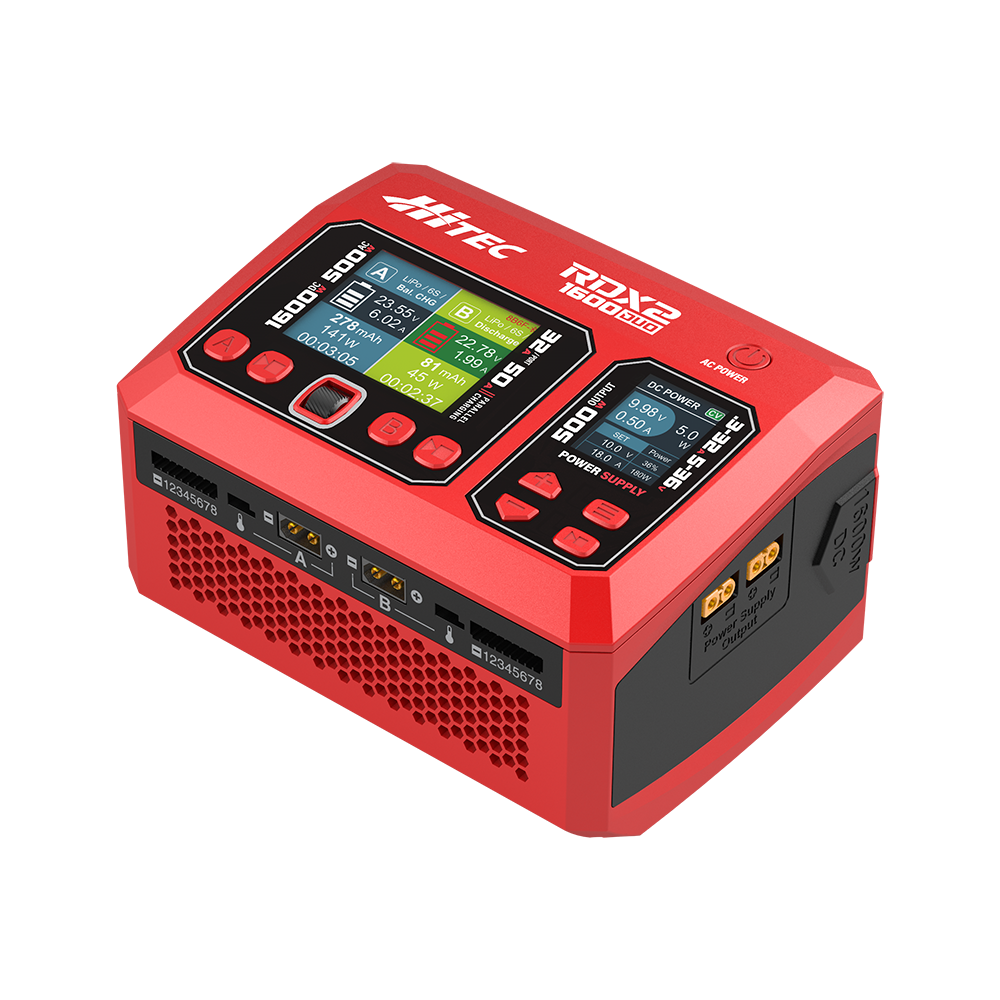

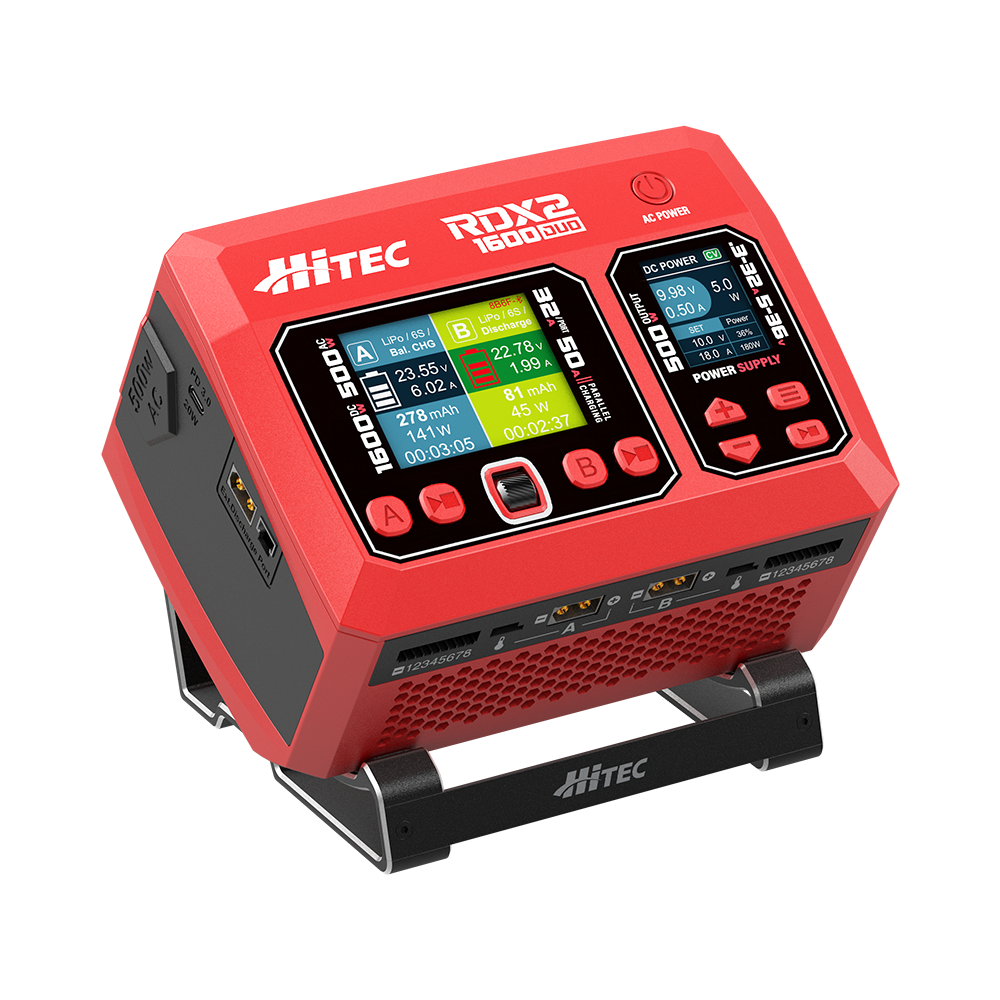

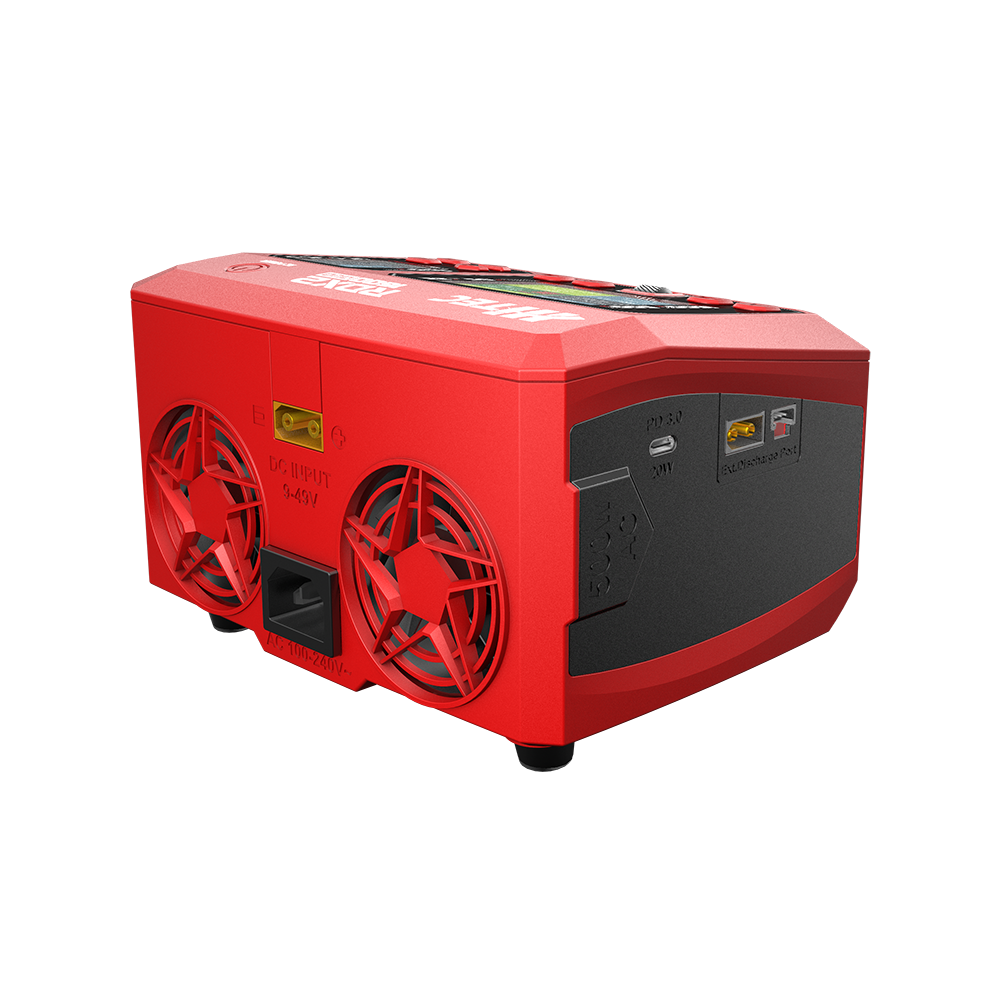

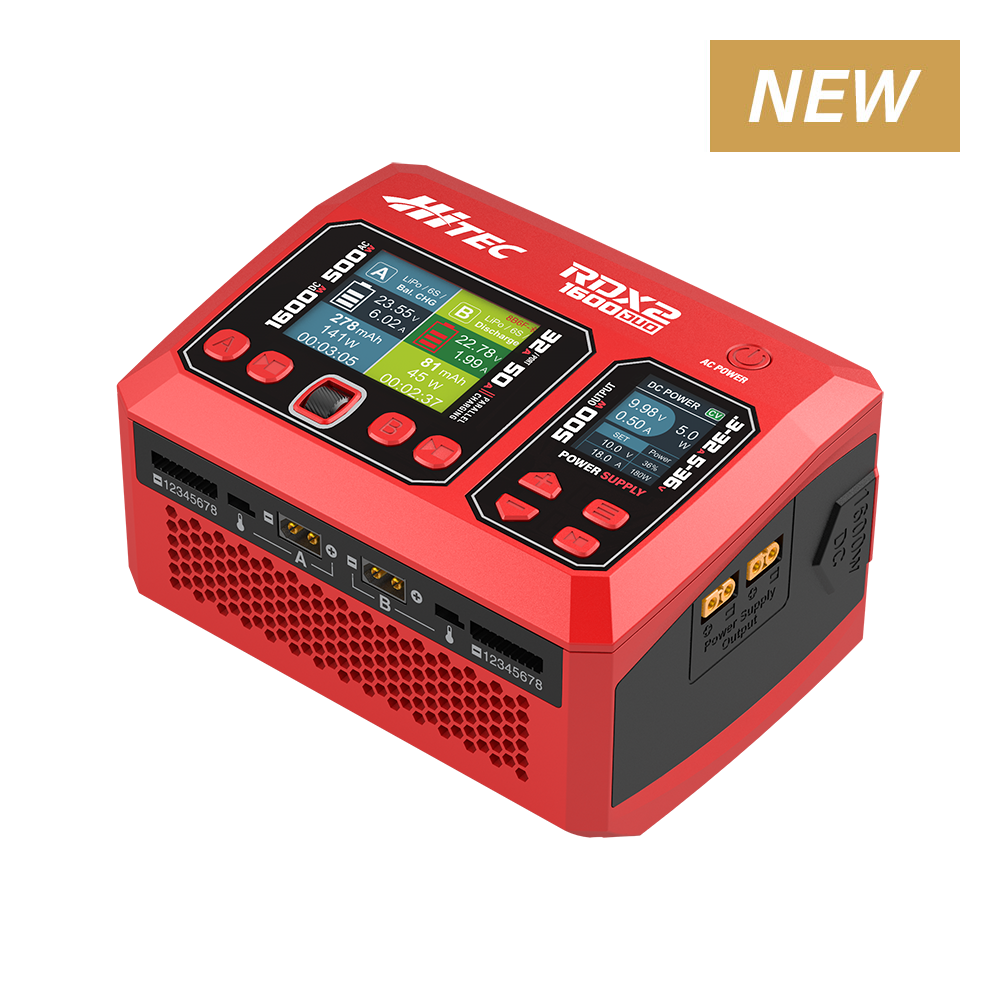

Transform the way you charge your high-capacity packs up to 8S with our state-of-the-art RDX2 1600 Duo AC/DC, multi-function battery charger! With dual charging capability up to 1600 watts on DC and 500 watts on AC, this charger also delivers an impressive output power of 32 amps per port, making it a powerhouse charging option for your RC needs. For even more power, the reverse discharging feature allows you to discharge your battery quickly and safely at the track or back at the workshop. Its built-in power supply makes it the convenient all-in-one device ensuring that you're always ready for action! Unleash Maximum Power with Hitec Today!
Compatible with Hitec's AD380 Battery Discharger / Analyzer:
Ideal for demanding users requiring aggressive cycling and pro-grade battery health analysis of their high-power packs.
Features
- 1600W DC & 500W AC Power
- Built-in Power Supply Function for Powering Devices up to 36V @ 32A

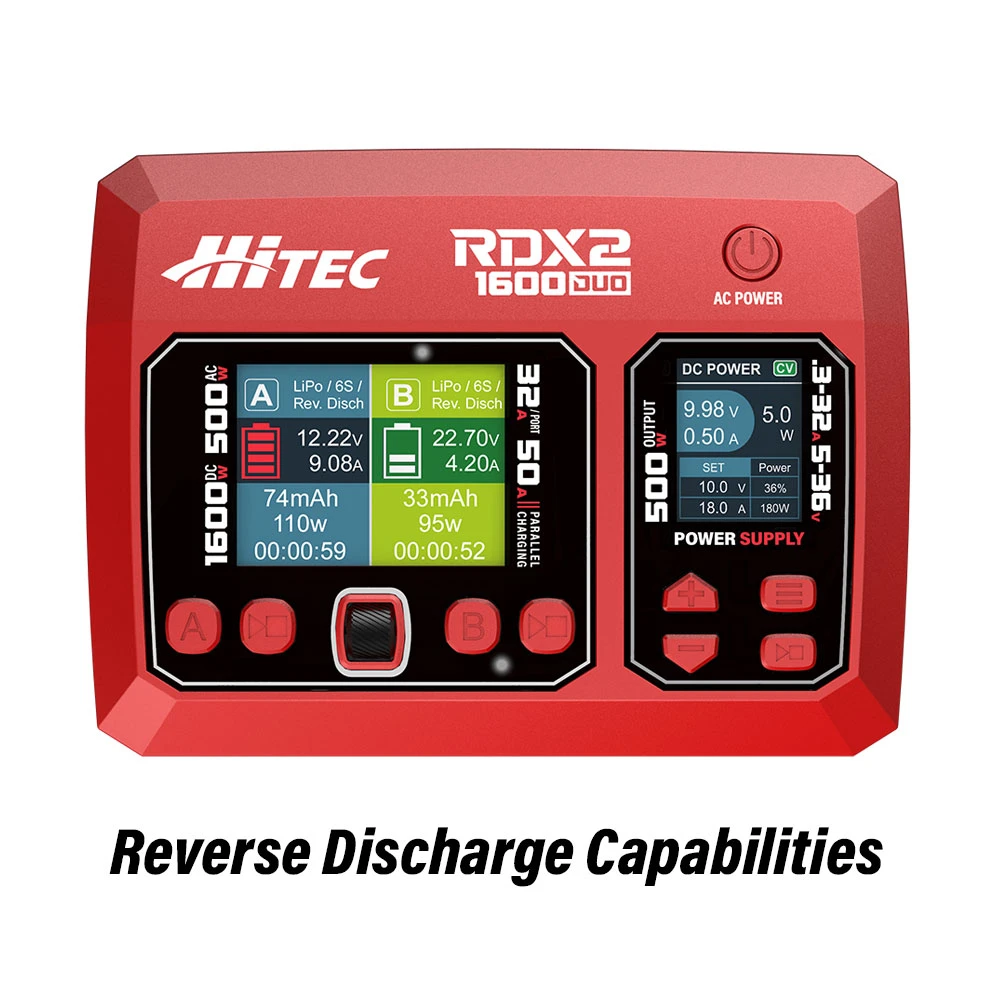

- Reverse Discharging up to 1100W Exclusively between Channels A & B
- 50A Parallel Charging
- Balance, Standard, Storage and Discharge Modes for All Lithium Battery Chemistries
- Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
- Capacity Cut-Off Limit
- Smart Ventilation Fan
Technical Specifications
- 100V – 240V AC Operating Voltage Range
- LiPo, LiFe & LiIon Cell Count: 1-8 Cells
- NiCd/NiMH Cell Count: 1-20 Cells
- Pb Lead-Acid Based Cell Count: 3/6/12 Cells
- Charge Circuit Power: 500W AC / 1600W DC
- Discharge Circuit Power: 45W
- Dimensions: 7.09 x 5.35 x 4.41 in.
- Weight: 3.585 lbs
NOTE: CONNECT LOAD BEFORE TURNING DC ON! CAUTION: AVOID HIGH CURRENT DEVICES; NOT SUITABLE FOR CHARGERS.
Hitec Charge Manager Software 1.14 for select RDX Series Chargers*
Charge Manager V1.14 ** (November 2025)
*For use with chargers with internal USB output
**Note: To program and save presets in Windows 10, you must run this software as administrator.
| NOTICE TO NON-UNITED STATES CUSTOMERS: Hitec can ship our entire line of chargers, charger parts and accessories to anywhere within the United States ONLY due to legal restrictions and liability issues. Hitec will fully refund all orders placed on our website containing shipping information associated with an address outside the United States. Please contact us directly for assistance and we apologize for any inconvenience. |
LIMITED WARRANTY
CHARGER Warranty: For a period of ONE YEAR or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.
THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.
Service and Repair
Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.
Phone: (858) 748-6948
Email: service@hitecrcd.com
For service or repair of your Hitec products follow the instructions below:
Print the Hitec Service Request Form
- Fill it out in its entirety, being as comprehensive as possible.
- Package your return just as it was packed when you purchased it.
- Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase
Ship your return, using a prepaid, traceable method to our new address:
Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123
- Once received, if an email address is provided, we will email a shipment notification with a reference number.
Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department. - Our goal is to ship your repair back out within 7-10 business days from the day we get it.
Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is. - If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
- Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
