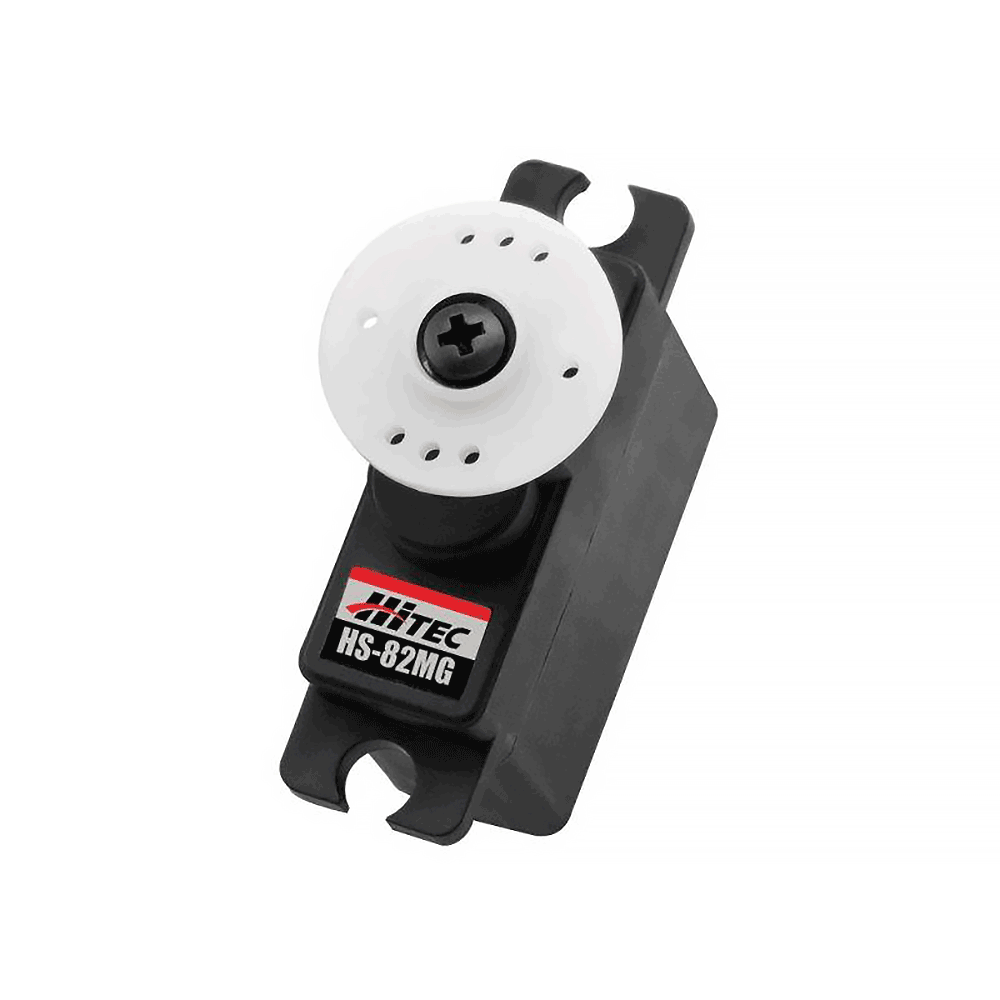

HS-82MG 19g Metal Gear Analog Micro Servo

$25.99
Part #:
32082S

Based on the ultra popular HS-81, the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.

Features

  • Top Selling Metal Gear Micro Servo
  • Strong Three-Pole Ferrite Motor
  • Rugged Metal Gears

HS-82MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 39 ~ 47
Maximum Torque Range kg. / cm. 2.8 ~ 3.4
Current Draw at Idle 10 mA
No Load Operating Current Draw 280 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 1.17 x 0.47 x 1.16
Dimensions (Metric) 29.8 x 12.0 x 29.6
Weight (Ounces) 0.66
Weight (Gram) 19.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 50 oz.
Sport Plane 42 - 50 oz.
Sailplane < 2 meter / DLG
3D Performance N / A
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/16th
Monster Truck N / A
Buggies 1/16th
Truggies N / A
Short Course / Truck 1/16th
Crawlers N / A
Sail Boat N / A
Power Boat 1/16th
