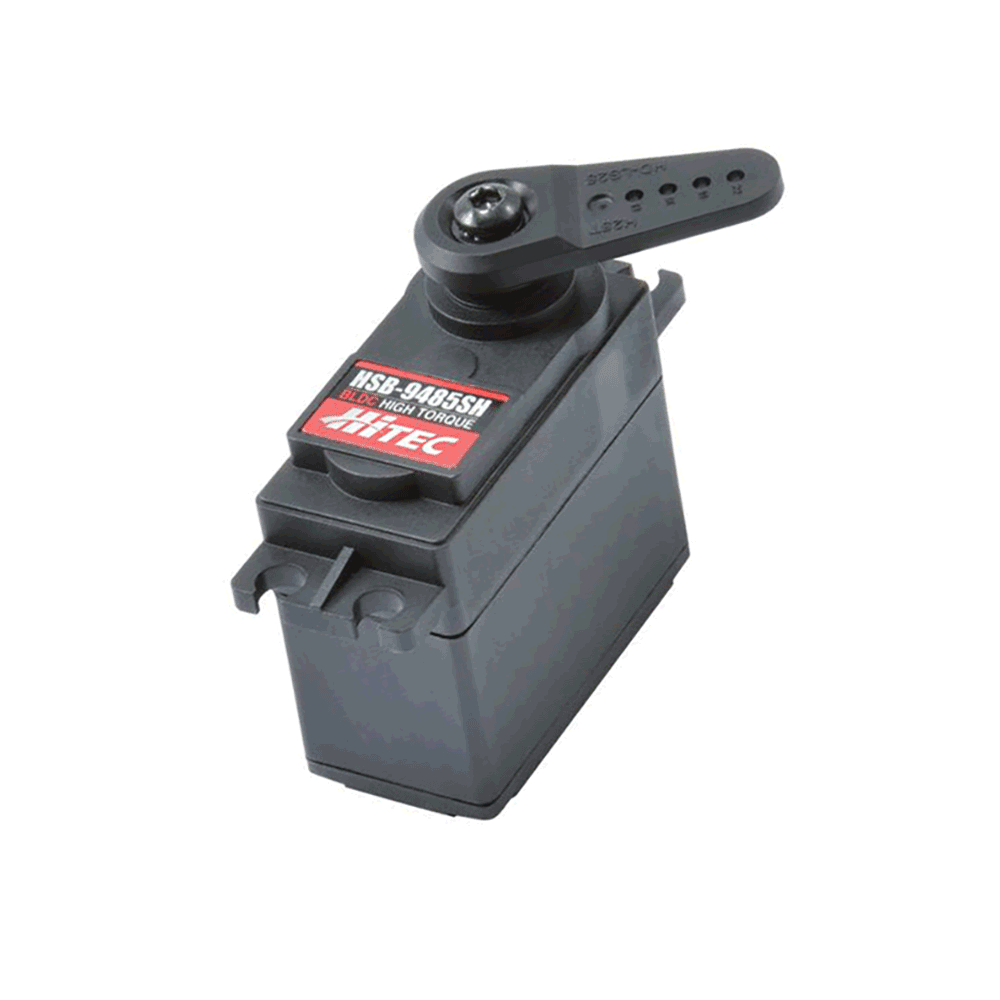

HSB-9485SH High Torque Steel Gear 25T Brushless Servo w/PAD

$117.99
Part #:
39486S

Pro level hobbyists demand the power and precision found in our HSB-9485SH servo. This premium servo is designed with our durable steel gears and impressive brushless motors and immense torque.



Features

  • Programmable 12-Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25-Tooth Output Spline
  • Nylon Reinforced Plastic Case
  • Ultra Low Power Consumption

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Data Save / Load
  • Program Reset (From File)


HS-9485SH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.18 ~ 0.15
Maximum Torque Range oz. / in. 361
Maximum Torque Range kg. / cm. 26.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 430 mA
Stall Current Draw 1,100 mA
Dead Band Width 1 µs

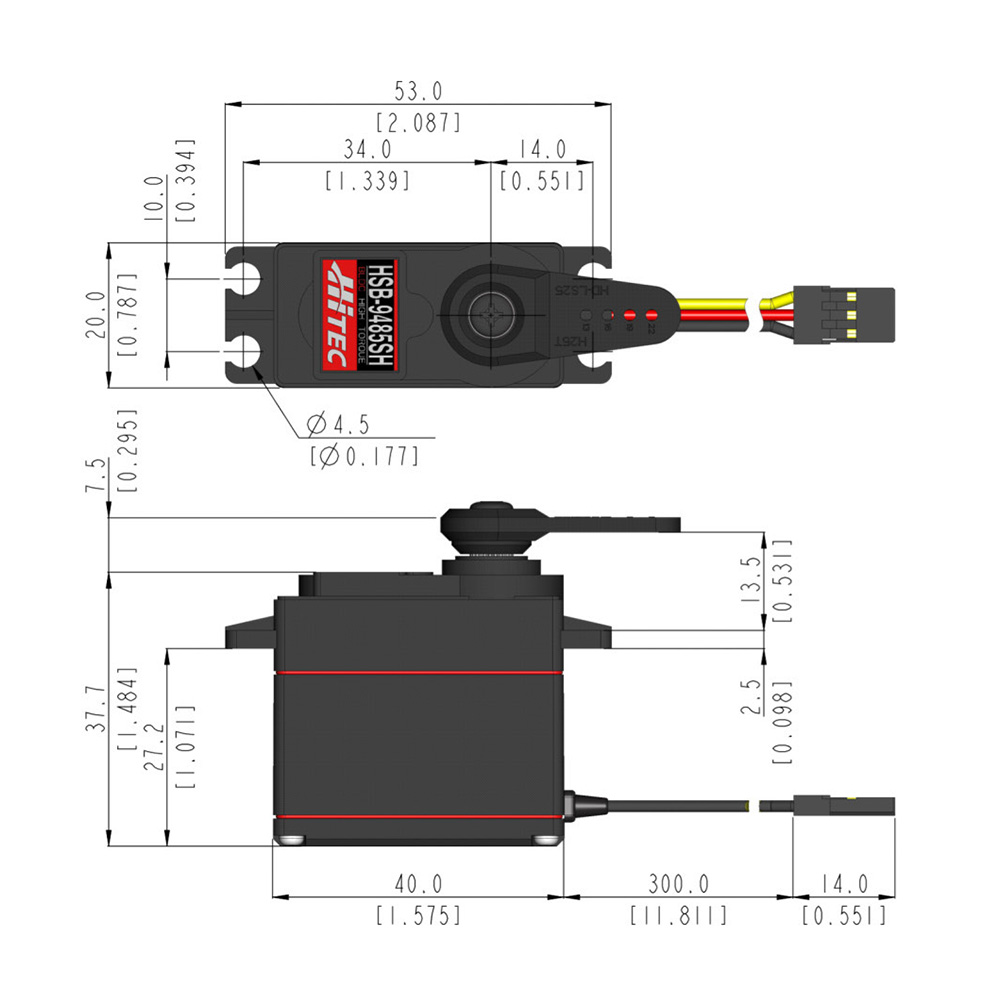

Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.45
Dimensions (Metric) 40.0 x 20.0 x 37.0
Weight (Ounces) 2.19
Weight (Gram) 62.0
Circuit Type EBL Digital
Motor Type Brushless
Gear Material Steel
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80
Radio Control Applications
Parkflyer N / A
Sport Plane 30 - 40%
Sailplane 2 meters and up
3D Performance 30 - 40%
Scale 30 - 40%
Electric Helicopter 700mm and up
Gas Helicopter 90+ Class
On Road 1/8th
Monster Truck 1/8th
Buggies 1/8th
Truggies 1/8th
Short Course / Truck 1/8th
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/5th
