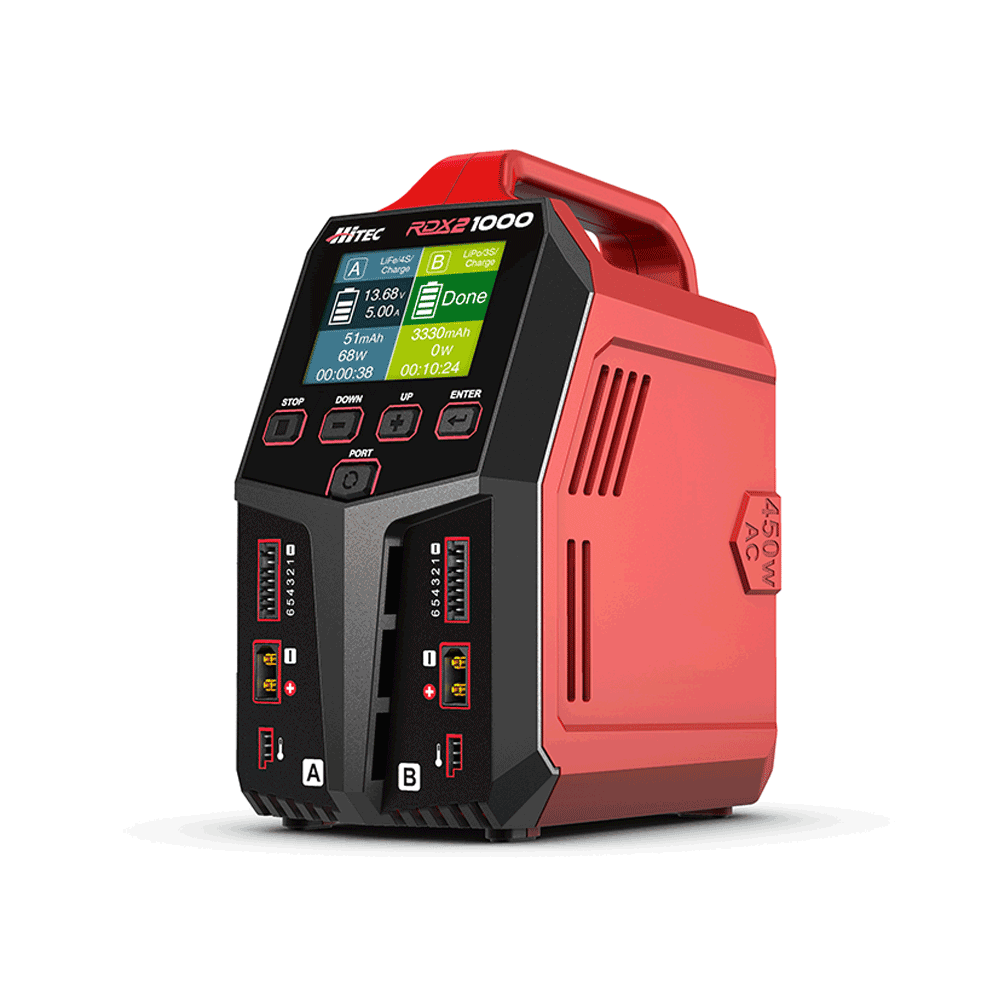

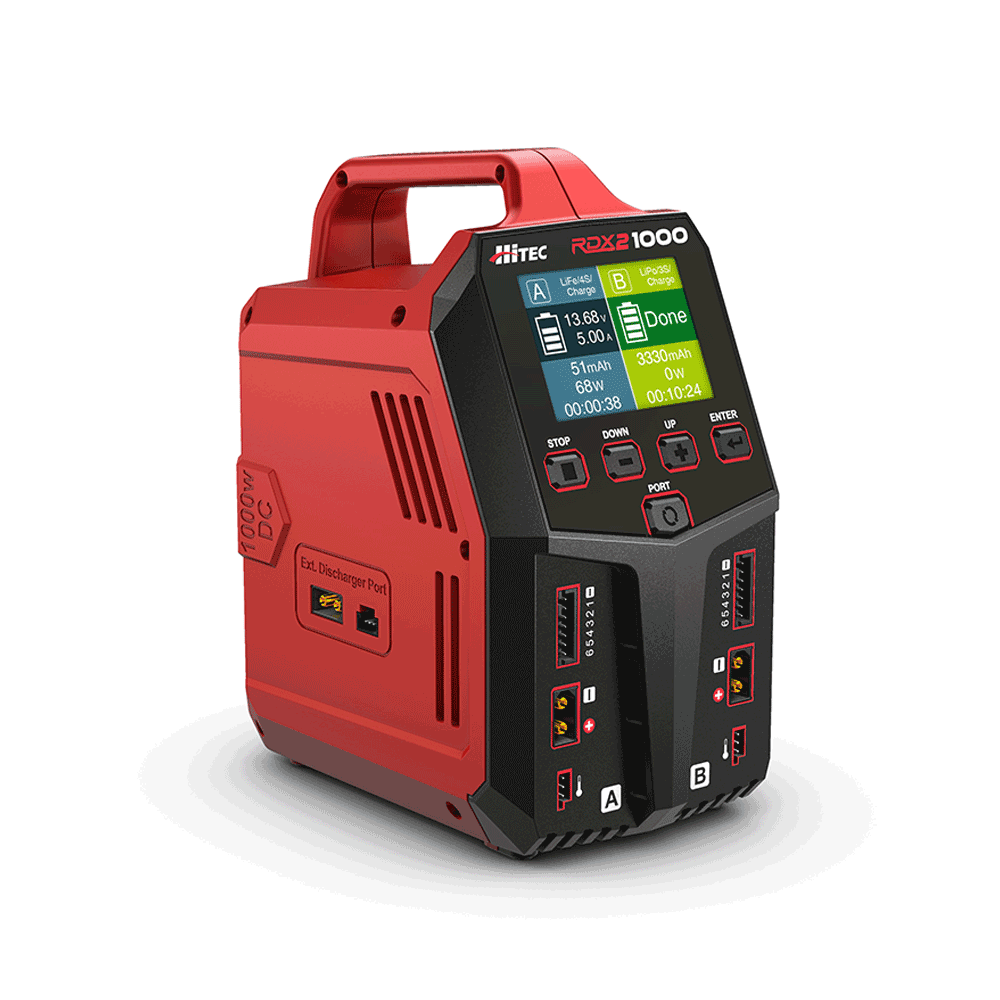

With a sleek modern design and easy-to-transport handle, the RDX2 1000 is the AC/DC powerhouse you need to charge your high-capacity battery packs at rapid rates. The dual output ports each offer 20 amps of power to simultaneously charge two batteries of any chemistry; or, you can pair the outputs to charge at rates up to 35 amps.

The RDX2 1000 features an easy-to-use LCD interface display and handy push button controls, while the front-panel XT60 connectors and XH balance ports help keep wiring uncluttered. Its high charge and discharge rates for lowering resistance and improving power make it perfect for Stock Class racers. Accepting both 12V DC, and 100 – 240 volts AC, the RDX2 1000 is ideal for charging at home or in the field, and perfect for all hobbyists needing ultra-fast charging of their larger battery packs. Internal circuitry allows discharge rates up to 2 amps, and 40 amps when paired with the companion AD350 Analyzer & Discharger (sold separately).

Features

User-Friendly Interface
Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
Battery Meter
Internal Resistance
Terminal Voltage Control
Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
Capacity Cut-Off Limit
Smart Ventilation Fan
Intelligent Power Distribution Between Ports
USB-C Socket for PC Interface and Firmware Upgrades
Programmable Power Supply Function 5-27V / 1-15A
Tire Warmer Power Supply Output (16V/8A

Technical Specifications

100V – 240V AC Operating Voltage Range
LiPo, LiFe & LiIon Cell Count: 1-6 Cells
NiCd/NiMH Cell Count: 4-15 Cells
Pb Lead-Acid Based Cell Count: 6-24 Volts
Charge Circuit Power: 450W AC / 1000W DC
Discharge Circuit Power: 10W (350W w/ AD350 Discharge Module)
Charger Current Range: 0.1A – 20A x 2 / 0.1A – 35A Parallel
PC Interface with Downloadable Software
12V Power Supply Mode Runs other Devices
Dimensions: 7.5 x 6.0 x 3.9 in. / 190 x 152 x 99mm
Weight: 3.0 lbs. / 1.36kg

Hitec Charge Manager Software 1.09 for select RDX Series Chargers*

Charge Manager V1.09 ** (April 2024)

Hitec Charge Master Software 1.07 for select RDX Series Chargers*

Charge Master V1.07 ** (February 2024)

*For use with chargers with internal USB output
**Note: To program and save presets in Windows 10, you must run this software as administrator.
