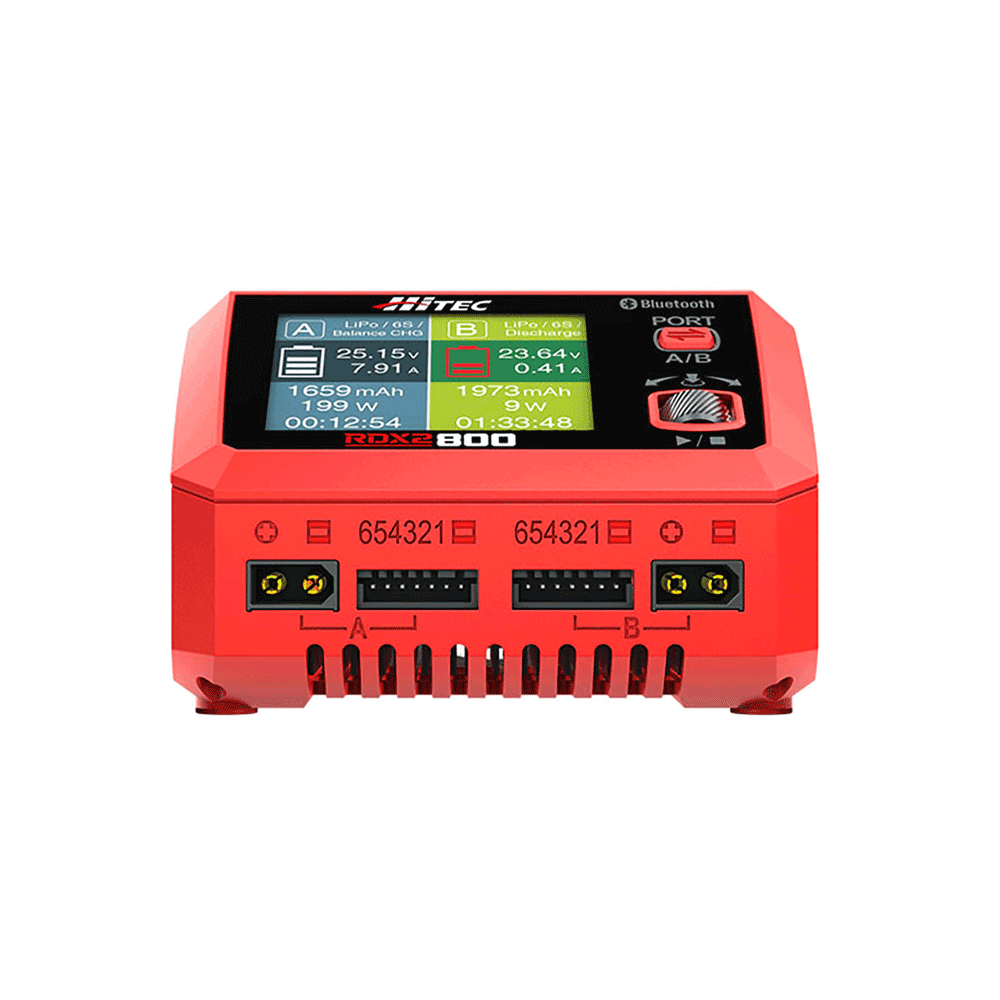

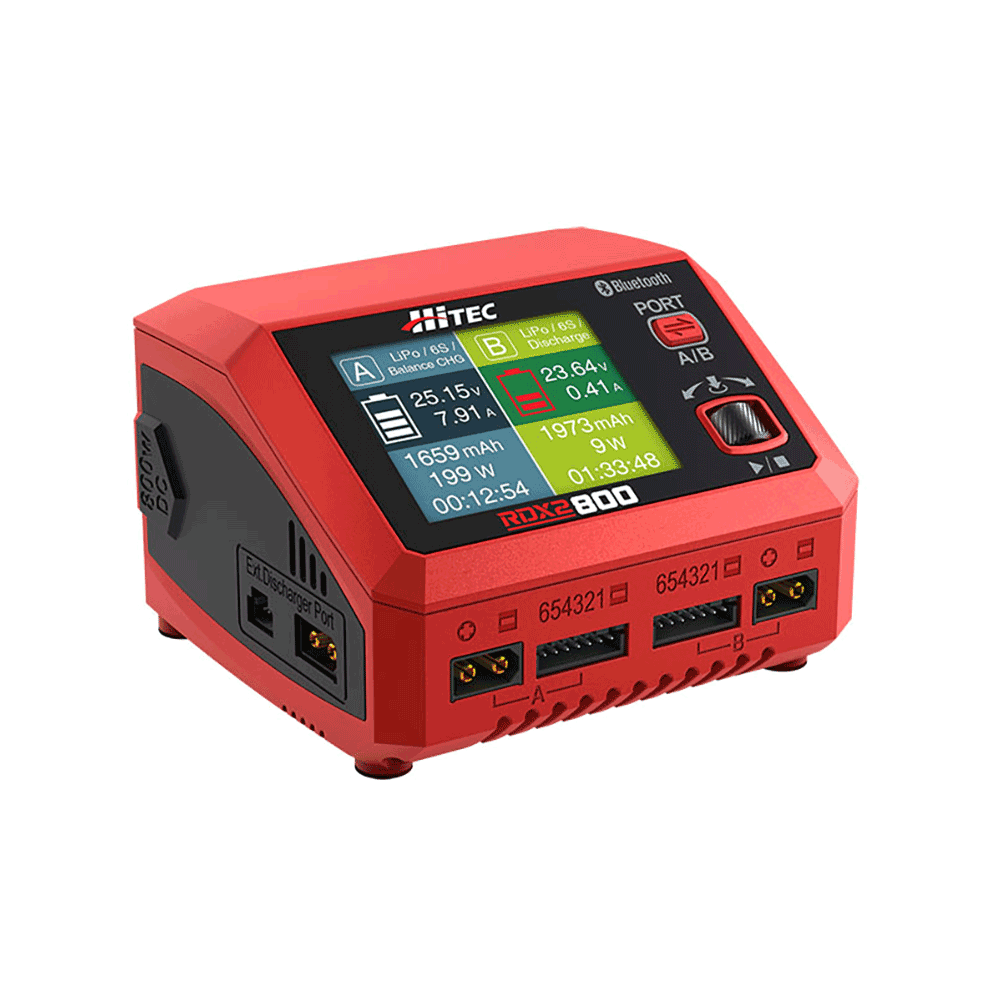

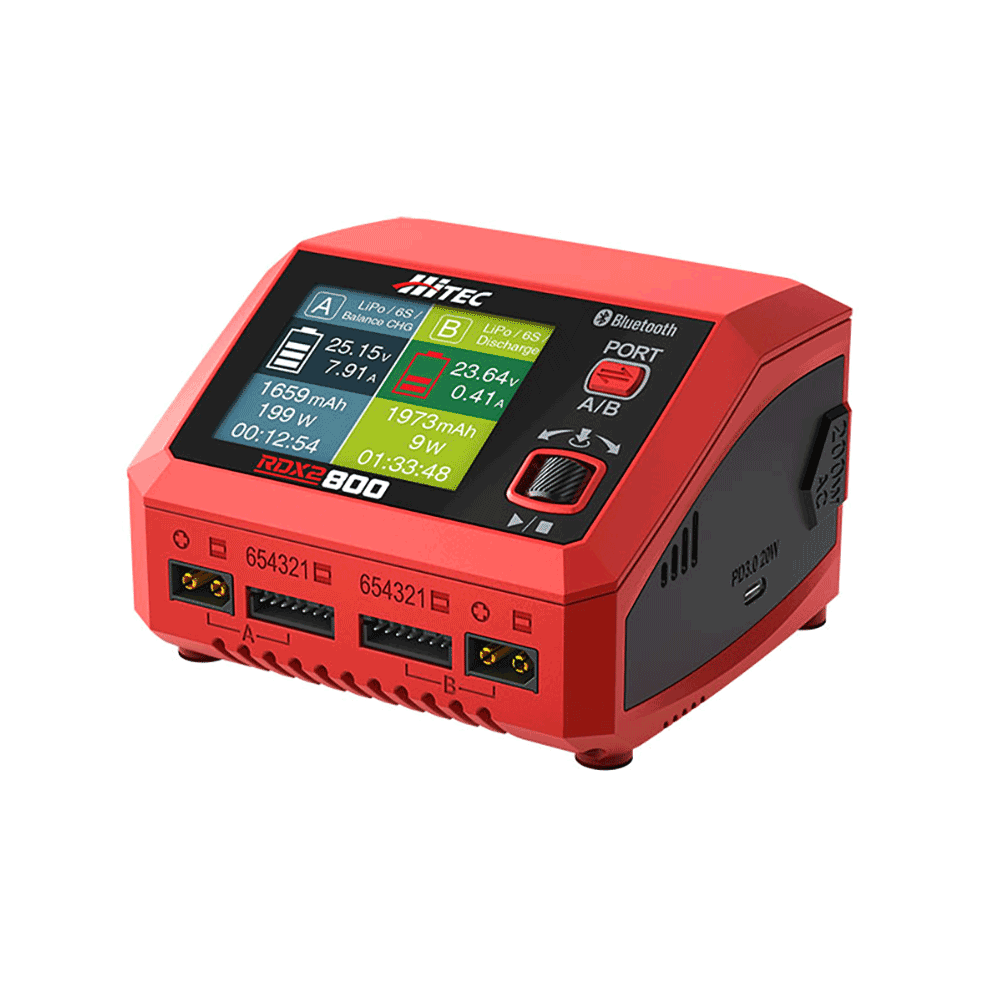

With high power dual ports offering 200W/20A individual port output you can simultaneously charge two batteries of any chemistry with the RDX2 800 AC/DC Charger. Combine the ports for parallel charging up to 800W/35A of 4S+ battery packs to power your 1/10th and 1/8th electric cars and larger sport and giant scale airplanes using up to 12S battery packs. It also operates from both AC and DC input, for maximum convenience and flexibility.

Due to its high charge and discharge rates using the optional AD350, the RDX2 800 is sure to be a favorite for sport and advanced level hobbyists. Its easy-to-use LCD interface display, handy push-button control and metal scroll wheel for simple setting selection add to its convenient design as does the built-in XT60 connector and XH balance connection for tidy wiring. The charger has a built-in Bluetooth 5.0 module, allowing users to easily control the RDX2 800 charger analyze batteries through the Hitec Link Power X App. Whether you are out in the field or at the track, you can test and check the battery curve and performance, anytime and anywhere.

Features

Built-in Bluetooth communication for use with iOS and Android Link Power X App.
Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
Independent Cell Balancing while Discharging
Battery Resistance Meter
Terminal Voltage Control
Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
Capacity Cut-Off Limit
Smart Ventilation Fan
Built-in Power Supply Function for Powering Devices up to 27V @ 10A

Technical Specifications

100V – 240V AC Operating Voltage Range
LiPo, LiFe & LiIon Cell Count: 1-6 Cells
NiCd/NiMH Cell Count: 1-15 Cells
Pb Lead-Acid Based Cell Count: 2-20V
Charge Circuit Power: 200W AC / 800W DC (Max 400W per port)
Discharge Circuit Power: 10W Main, 350W External
PC Interface with Downloadable Software
Dimensions: 4.6 x 4.3 x 3.1 in.
Weight: 1.33 lbs

Hitec Charge Manager Software 1.09 for select RDX Series Chargers*

Charge Manager V1.09 ** (April 2024)

Hitec Charge Master Software 1.07 for select RDX Series Chargers*

Charge Master V1.07 ** (February 2024)

*For use with chargers with internal USB output
**Note: To program and save presets in Windows 10, you must run this software as administrator.

LIMITED WARRANTY

CHARGER Warranty: For a period of ONE YEAR or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.

THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.

Service and Repair

Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.

Phone: (858) 748-6948
Email: service@hitecrcd.com

For service or repair of your Hitec products follow the instructions below:

Print the Hitec Service Request Form

Fill it out in its entirety, being as comprehensive as possible.
Package your return just as it was packed when you purchased it.
Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase

Ship your return, using a prepaid, traceable method to our new address:

Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123

Once received, if an email address is provided, we will email a shipment notification with a reference number.
Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department.
Our goal is to ship your repair back out within 7-10 business days from the day we get it.
Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is.
If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
