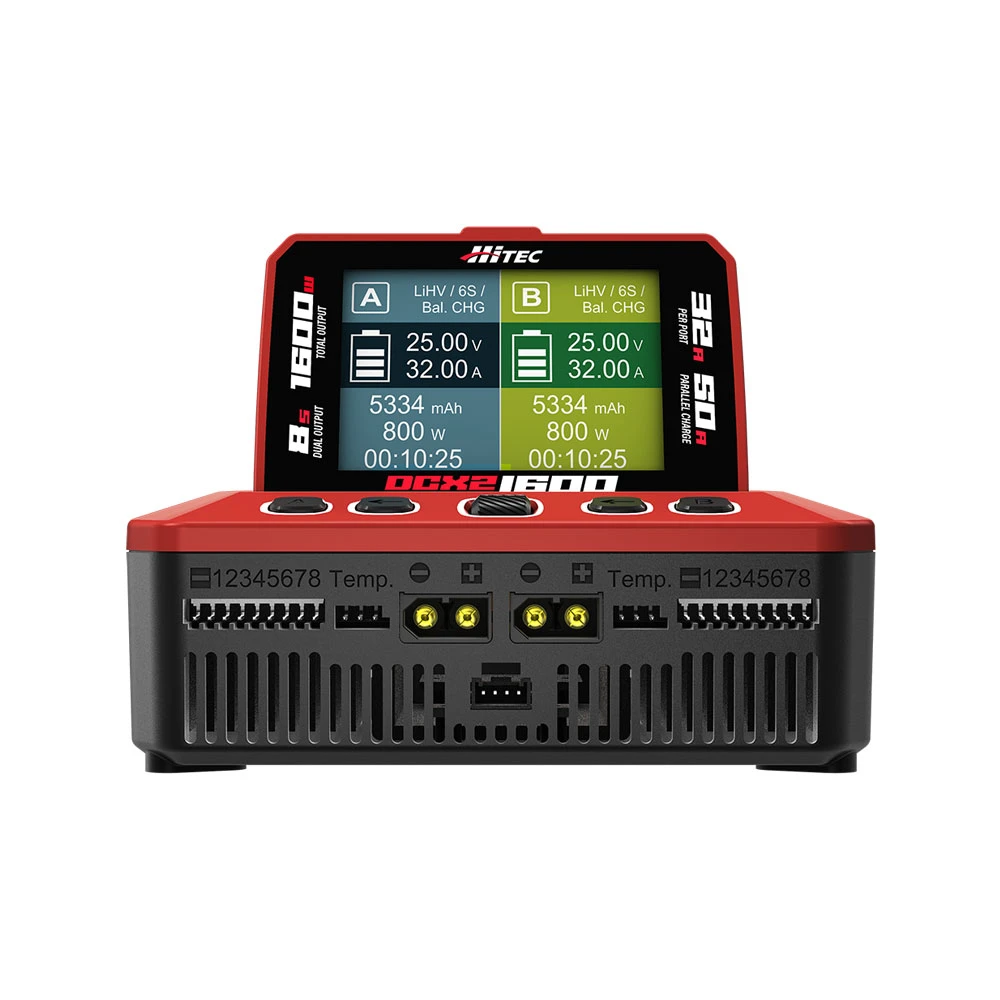

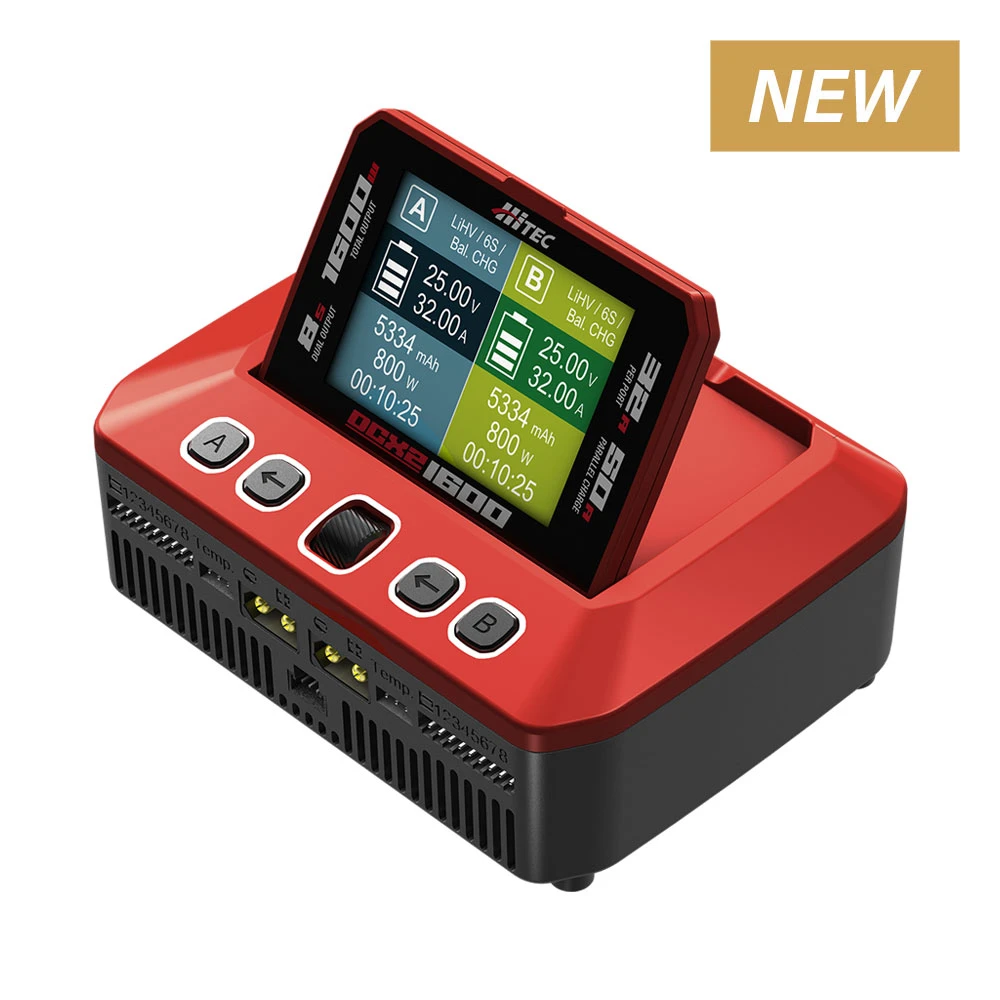

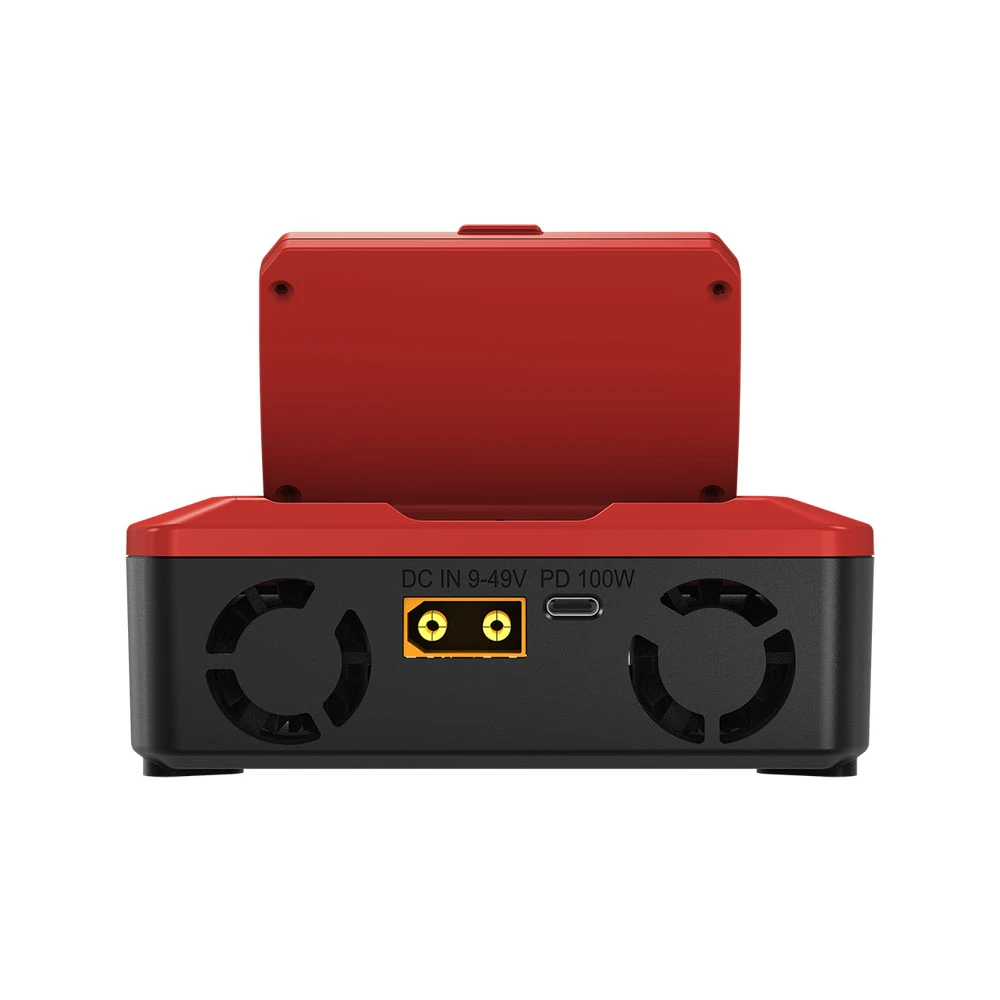

The DCX2 1600 is a high-powered, dual-port DC charger delivering advanced battery management for RC hobbyists. Running from any 9–49V DC power source, it supplies up to 1100 watts on a single channel or 1600 watts across both. Charge two packs at up to 32 amps per port, or combine both ports in parallel mode to push 33–50 amps into a single 2–8S lithium pack.
Charge LiPo, LiHV, LiFe and Li-ion packs from 1 to 8 cells, NiMH/NiCd packs up to 20 cells, and 3/6/12-cell lead-acid batteries. Reverse discharging moves up to 1100W from one battery into the battery on the other channel, reducing wasted energy, and with an AD380 or AD350 connected, Channel A discharges at up to 40 amps. Battery resistance metering, an external temperature sensor port and built-in Bluetooth control through Hitec's LinkPowerX app round out a charger built for aggressive cycling and detailed pack analysis.
The DCX2 1600 also works as an adjustable 5–36V power supply for tire warmers and other pit gear (up to 32A / 1100W), and its 100W USB-C PD 3.0 port charges mobile devices. An XT90 DC input cord with 4mm bullets is included; a DC power supply and parallel charging cable are sold separately.
Need AC input too? The RDX2 1600 Duo pairs 1600W of DC charging with 500W on AC. Add the AD380 Battery Discharger / Analyzer for 40A discharging, pick up the XT60 to XT60, XT60 to XT90 or XT60 to 4/5mm Bullet w/ XH parallel adapter cables in our charging accessories, or browse all Hitec battery chargers to compare.
Key Features
- Dual Port Charging up to 32A x 2 / 50A Parallel
- 1100W Reverse Discharging between Channels A & B
- Bluetooth Control via Link Power X App (iOS & Android)
- Built-in 36V @ 32A Power Supply & USB-C PD Output
- 40A External Discharging with Optional AD380/AD350
- Flip-Up Display
- Balance, Standard, Storage & Discharge Modes for All Lithium Chemistries
- Re-Peak & Delta-Peak Modes for NiMH/NiCd
- Battery Resistance Meter
- Terminal Voltage Control
- Capacity Cut-Off
- Temperature Sensor Port
- Smart Ventilation Fan
Technical Specifications
- 9V – 49V DC Operating Voltage Range
- LiPo, LiHV, LiFe & Li-ion Cell Count: 1-8 Cells
- NiCd/NiMH Cell Count: 1-20 Cells
- Pb Lead-Acid Based Cell Count: 3/6/12 Cells
- Charge Circuit Power: 1600W DC (Max 1100W per port)
- Discharge Circuit Power: 45W
- Dimensions: 5.51 x 4.25 x 1.71 in.
- Weight: 1.17 lbs
Max Charging Amps: Single Port, Dual Port & Parallel Mode
⚠️ HOW POWER IS SPLIT:
- Single Port Column: The maximum amps available when one battery is charging on one channel and the other channel is idle (up to 1100W).
- Dual Port Column: The maximum amps available per port when two separate batteries are charging at the same time (one on Channel A, one on Channel B), splitting the 1600W total power pool 50/50.
- Parallel Mode Column: The maximum amps available when you link both channels together with a parallel charging cable to charge one single 2–8S lithium battery using the charger's combined power.
The chart below breaks down the maximum available charging current for LiPo batteries (calculated using 4.2V per cell for maximum wattage math).
|
Battery Config |
Max Volts |
Single Port (1100W on 1 Pack) |
Dual Port Mode (800W per port / 1600W Max Shared) |
Parallel Mode (1600W Combined on 1 Pack) |
|---|---|---|---|---|
|
1S |
4.2V |
10.0 A (1S Max) |
10.0 A (1S Max) |
N / A |
|
2S |
8.4V |
32.0 A (Maxed) |
32.0 A (Maxed) |
50.0 A (Maxed) |
|
3S |
12.6V |
32.0 A (Maxed) |
32.0 A (Maxed) |
50.0 A (Maxed) |
|
4S |
16.8V |
32.0 A (Maxed) |
32.0 A (Maxed) |
50.0 A (Maxed) |
|
5S |
21.0V |
32.0 A (Maxed) |
32.0 A (Maxed) |
50.0 A (Maxed) |
|
6S |
25.2V |
32.0 A (Maxed) |
31.7 A |
50.0 A (Maxed) |
|
7S |
29.4V |
32.0 A (Maxed) |
27.2 A |
50.0 A (Maxed) |
|
8S |
33.6V |
32.0 A (Maxed) |
23.8 A |
47.6 A |
⚠️ POWER SUPPLY NOTICE: The DCX2 1600 is a DC-only charger, so your power supply sets the ceiling. The charger draws up to 32A of input current on a single channel and 55A across both channels. Reaching the full 1100W on one port requires a supply of roughly 35V or higher, and the full 1600W across both ports requires roughly 30V or higher. On a lower-voltage supply, such as 12V or 24V, available charging power and the amps shown above will be reduced. Use a supply rated for the voltage and current you plan to charge at, and set the Min. Input Voltage in the charger's settings to protect it.
Hitec Charge Manager Software 1.15 for select RDX Series Chargers*
Charge Manager V1.15 ** (Updated January 2026)
> RDX2 1600 Duo uses the the Charge Manager Software for updates ONLY.
*For use with chargers with internal USB output
**Note: PC USE ONLY. To program and save presets in Windows 10, you must run this software as administrator.
| NOTE: CONNECT LOAD BEFORE TURNING DC ON! CAUTION: AVOID HIGH CURRENT DEVICES; NOT SUITABLE FOR CHARGERS. |
| NOTICE TO NON-UNITED STATES CUSTOMERS: Hitec can ship our entire line of chargers, charger parts and accessories to anywhere within the United States ONLY due to legal restrictions and liability issues. Hitec will fully refund all orders placed on our website containing shipping information associated with an address outside the United States. Please contact us directly for assistance and we apologize for any inconvenience. |
LIMITED WARRANTY
CHARGER Warranty: For a period of ONE YEAR or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.
THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.
Service and Repair
Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.
Phone: (858) 748-6948
Email: service@hitecrcd.com
For service or repair of your Hitec products follow the instructions below:
Print the Hitec Service Request Form
- Fill it out in its entirety, being as comprehensive as possible.
- Package your return just as it was packed when you purchased it.
- Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase
Ship your return, using a prepaid, traceable method to our new address:
Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123
- Once received, if an email address is provided, we will email a shipment notification with a reference number.
Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department. - Our goal is to ship your repair back out within 7-10 business days from the day we get it.
Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is. - If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
- Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
