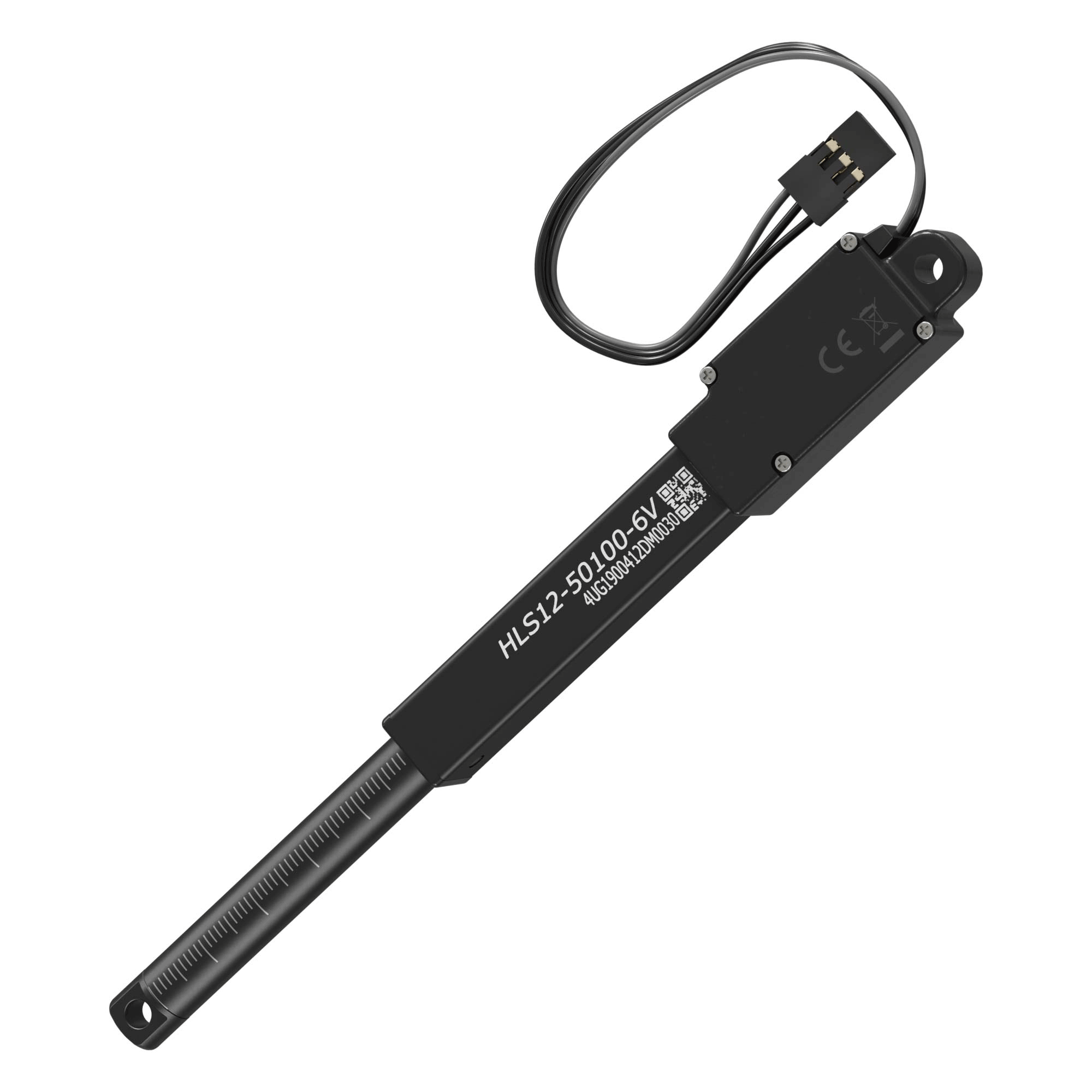

With 50mm of travel and a 100:1 gear ratio, the HLS12-50100 is ideal for medium stroke applications requiring a faster transit speed with more power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
The HLS12-5050 offers more speed, while additional force is available with the high gear ratios of our HLS12-50210 and HLS12-50380 versions.
Applications requiring less travel will be better matched to our HLS12-30XX linear actuators, while the HLS12-100XX series offers more excursion.
Servo Specifications | |
Command Protocol | PWM |
Lead Screw | 5mm |
Motor Type | Cored Metal Brush |
Operating Voltage (Volts DC) | 4.0V ~ 8.4V |
Testing Voltage | 6.0V |
Gear Ratio | 100:1 |
No Load Speed | 13.00mm/s |
No Load Current | 100mA |
Maximum Efficiency Point | Load (kg / N): 1.7 / 17 Speed (mm/s): 13.0 Current (mA): 200 |
Pear Power Point | Load (kg / N): 3.1 / 31 Speed (mm/s): 7.0 Current (mA): 300 |
Max Force (Lifted) | Load (kg /N): 4.2 / 42 Speed (mm/s): 3.2 Current (mA): 400 |
Stall Force | 5.0kgf (49.03N) |
Stall Current | 500mA |
Max Static Force | 20.39kgf (200N) (above) |
Stroke SPEC | 50mm |
Repeatability | ±0.3mm |
Max Side Load (Extended) | 3.06kgf (30N) |
Outline Dimensions | 102.0 x 15.0 x 18.0mm ( 4.02 x 0.59 x 0.71 in. ) |
Weight | 40g (1.41 oz) |
Connector Wire Length | 160mm (6.29 in.) |
Connector Wire Gauge | 24AWG |
Bearing Type | Flange bearing |
Case Material | Engineering Plastic & Aluminum Pipe |
Gear Material | 4 Metal Gears |
IP Rating | IP4X |
Servo Amplifier Type | 32bit programmable Digital |
