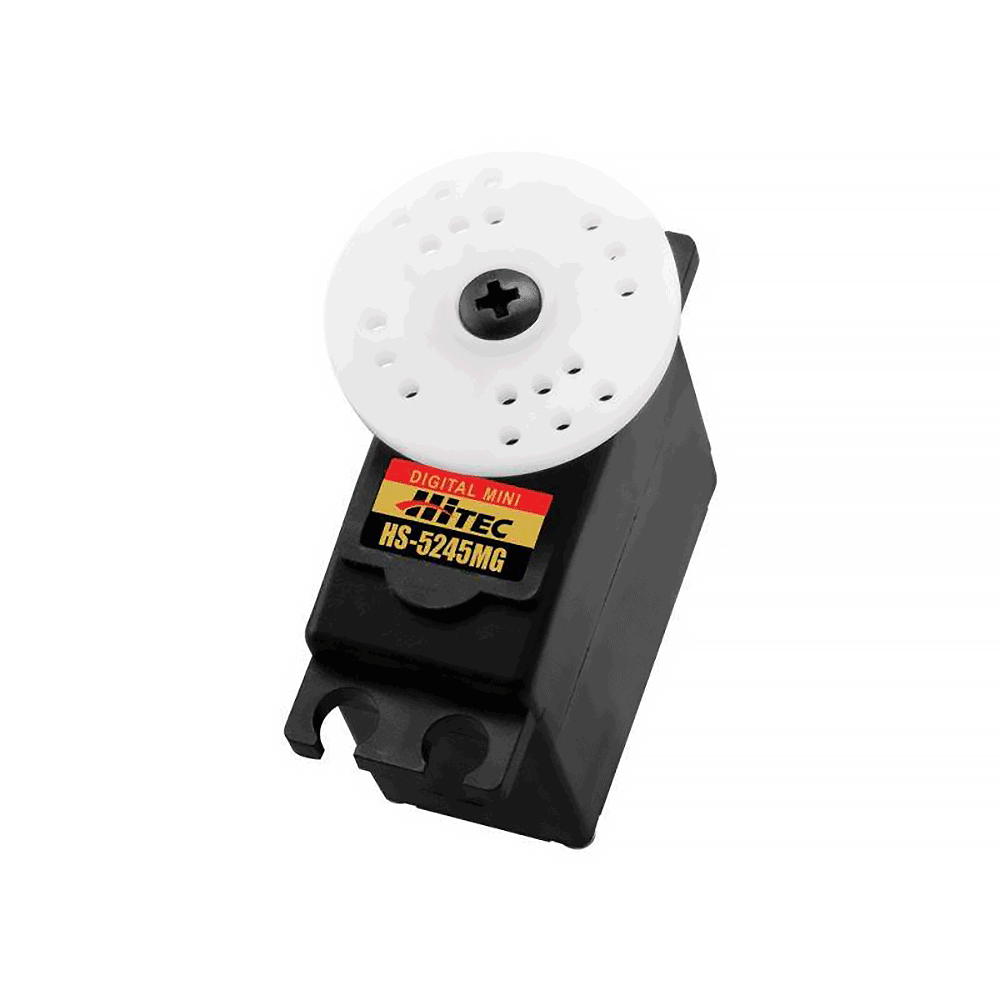

HS-5245MG 32g Cored Metal Gear 24T Digital Mini Servo

$44.99
Part #:
35245S

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features

  • High Speed and High Torque in a Mini Package
  • Durable Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • Fast, High Torque

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

HS-5245MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.15 ~ 0.12
Maximum Torque Range oz. / in. 61 ~ 76
Maximum Torque Range kg. / cm. 4.4 ~ 5.5
Current Draw at Idle 3 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 1,200 mA
Dead Band Width 4 µs

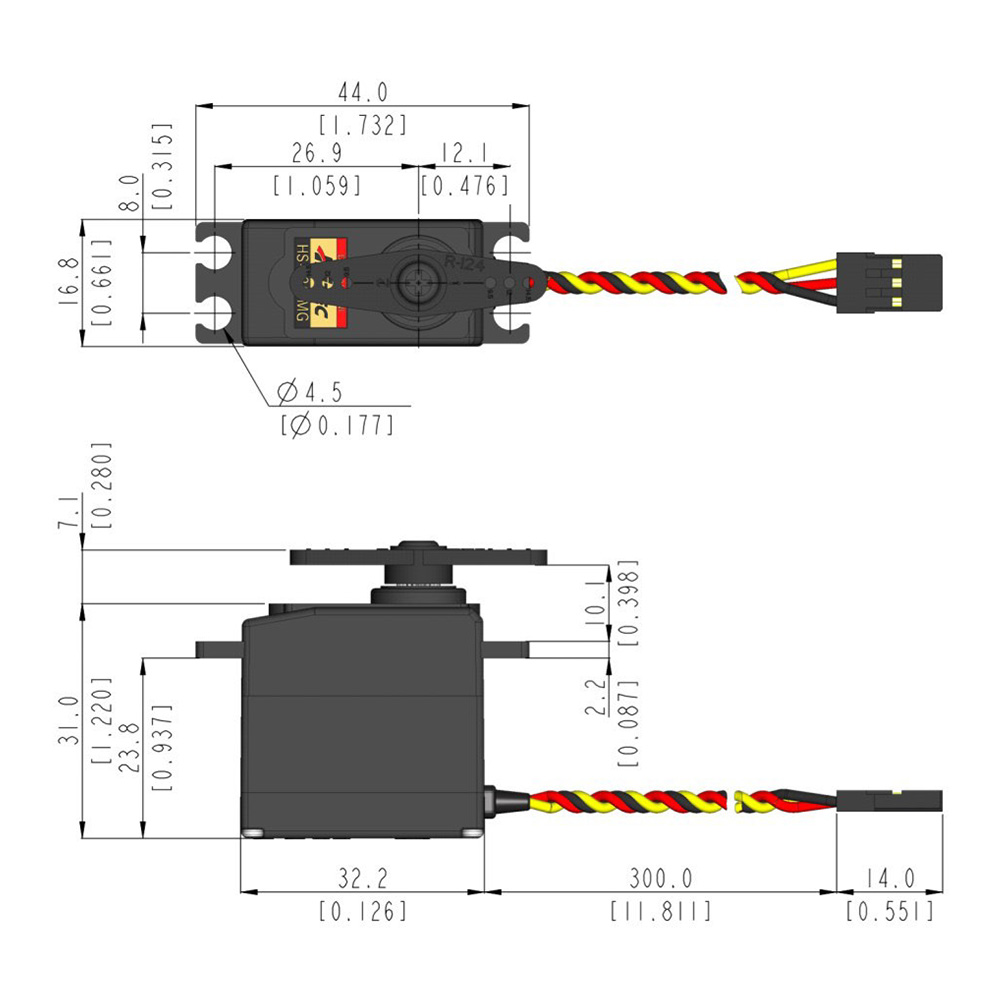

Physical Specifications
Dimensions (Inches) 1.27 x 0.66 x 1.21
Dimensions (Metric) 32.4 x 16.8 x 30.8
Weight (Ounces) 1.12
Weight (Gram) 32.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 3 meter
3D Performance 50 - 64 oz.
Scale N / A
Electric Helicopter 500mm
Gas Helicopter 50 - 59 Class
On Road 1/12th
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers 1/18th
Sail Boat < 1 meter
Power Boat 1/16th
