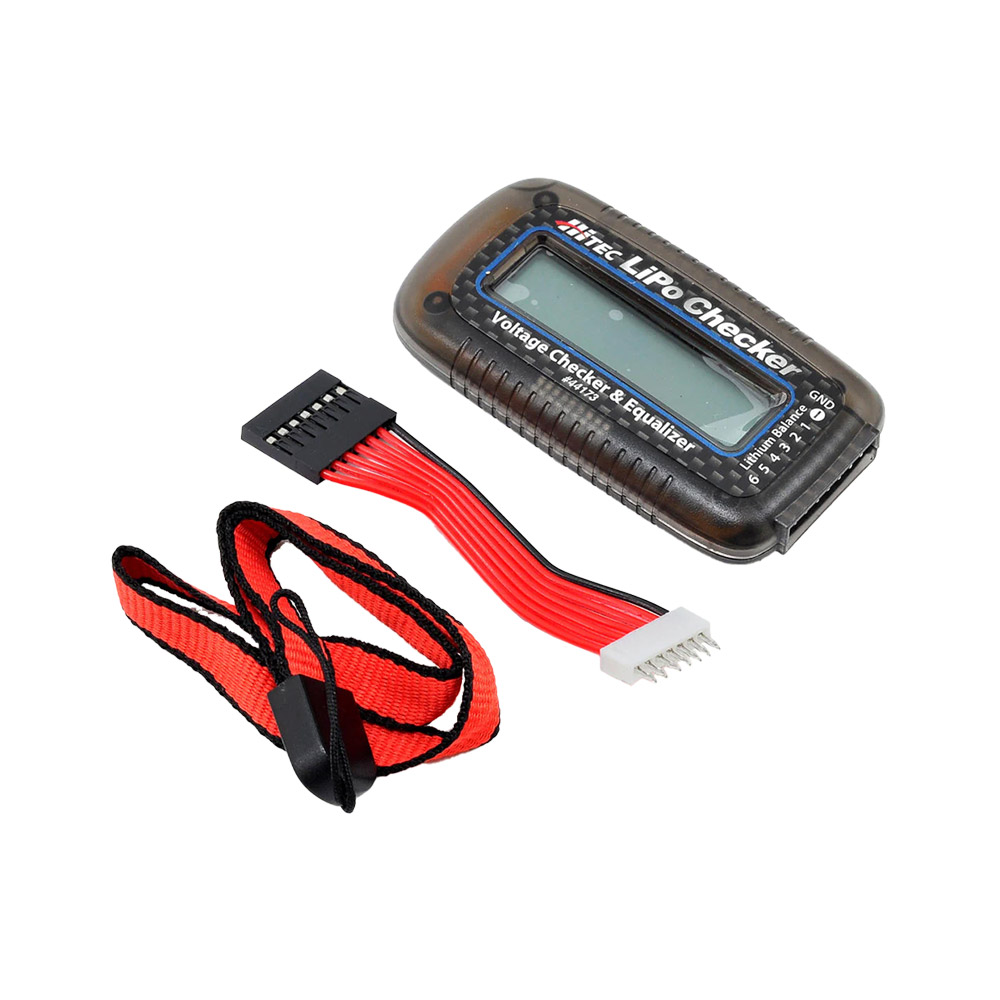

Take complete control of your lithium power packs at the track, field, or workbench with the official Hitec LiPo Voltage Checker & Balancer. Designed as an essential pocket-sized tool for every RC enthusiast, this device provides a dual-purpose health snapshot of your batteries without requiring an external power outlet. It functions as a rapid diagnostic meter and cell equalizer, ensuring you never launch an uncharged pack or permanently damage your cells through heavy drifting.
Equipped with a high-contrast, crystal-clear digital LCD display, this battery-powered diagnostic tool instantly showcases your overall capacity percentage alongside real-time individual cell millivolt readouts. If left connected, its automatic internal balancing circuitry activates to safely shave down high cells, creating a fully balanced pack before you ever connect it to your main charging station.
Key Features
- Instant Digital Diagnostic Display: High-visibility LCD panel showcases individual cell millivolt readings and remaining total capacity percentage at a glance.
- Automatic Voltage Equalization: Intelligently detects cell cell drift over 0.02V and initiates an internal 50mA trimming bleed to balance cells to within 0.01V or less.
- Self-Powered Portability: Draws running current directly from the connected lithium battery pack, eliminating the need for trailing power leads or internal AA batteries.
- Dual Connector Layout: Features a native JST-XH 7-pin master terminal grid and includes a separate adapter to fit classic Thunder Power (TP) and Flight Power (FP) configurations.
- Built-In Energy Saver: Programmed with protective auto-shutoff thresholds to actively prevent battery over-discharge while hooked up on the pit bench.
Battery Compatibility & Use Guide
This standalone device functions entirely independently of your main charger station and is strictly built to monitor lithium chemistries. It accommodates standard field configurations up to 6S limits:
- Supported Battery Chemistries: Lithium Polymer (LiPo) and standard Lithium-based variants.
- Cell Count Compatibility: Safely processes individual cells ranging from simple 2S packs up to heavy-duty 6S setups.
- Supported Balance Styles: Native JST-XH balance plugs fit directly into the case; Thunder Power and Flight Power packs use the included adapter board.
Operational Note: To check a battery, simply connect its balance lead to the matching terminal pins. Leaving the tool connected for more than 5 seconds will automatically engage balance mode, which will safely flash a visual indicator next to cells receiving active trimming. Always disconnect the device within 3 hours to preserve remaining pack capacity.
