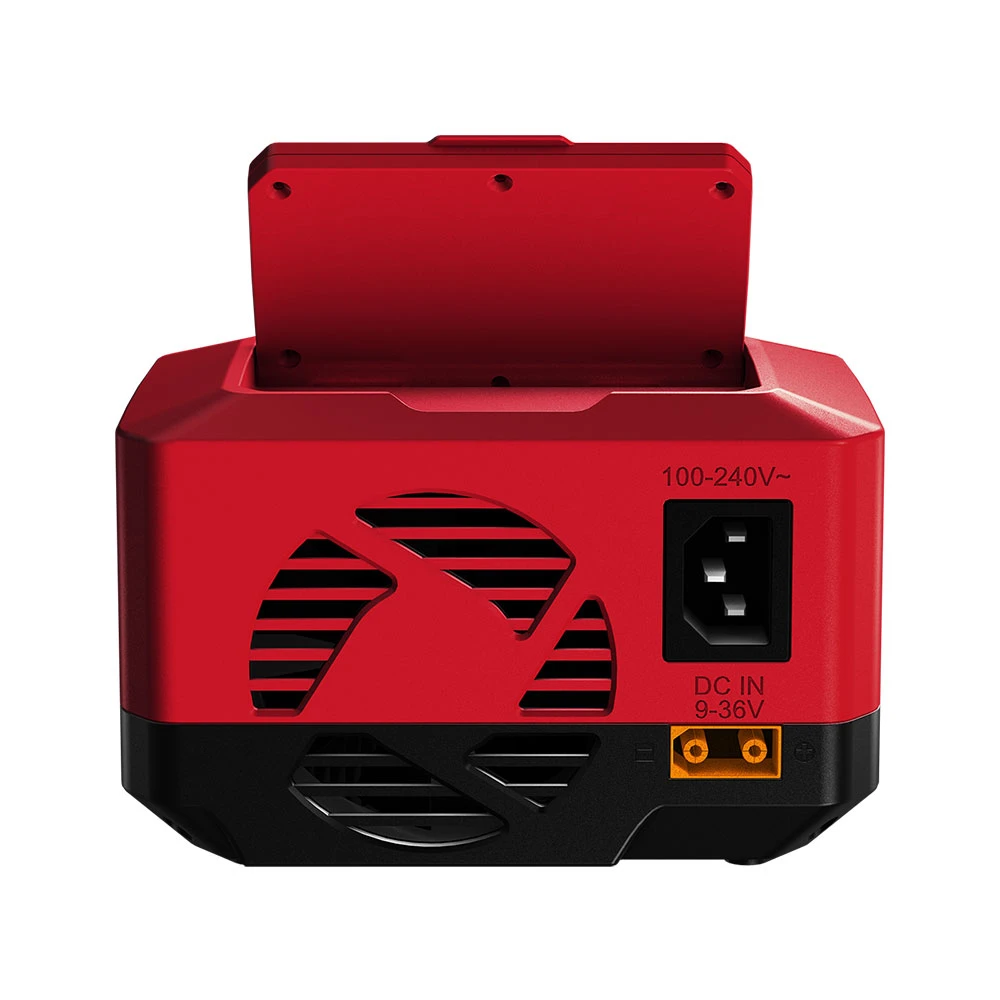

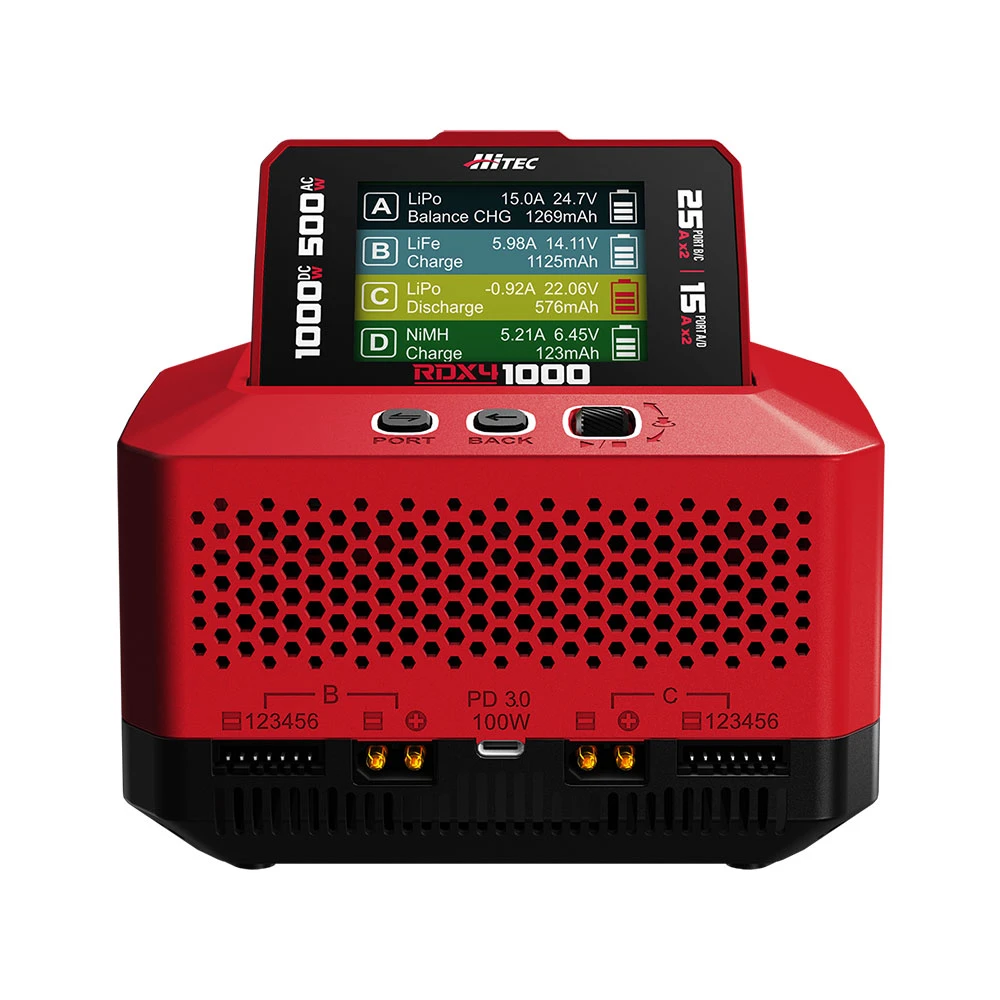

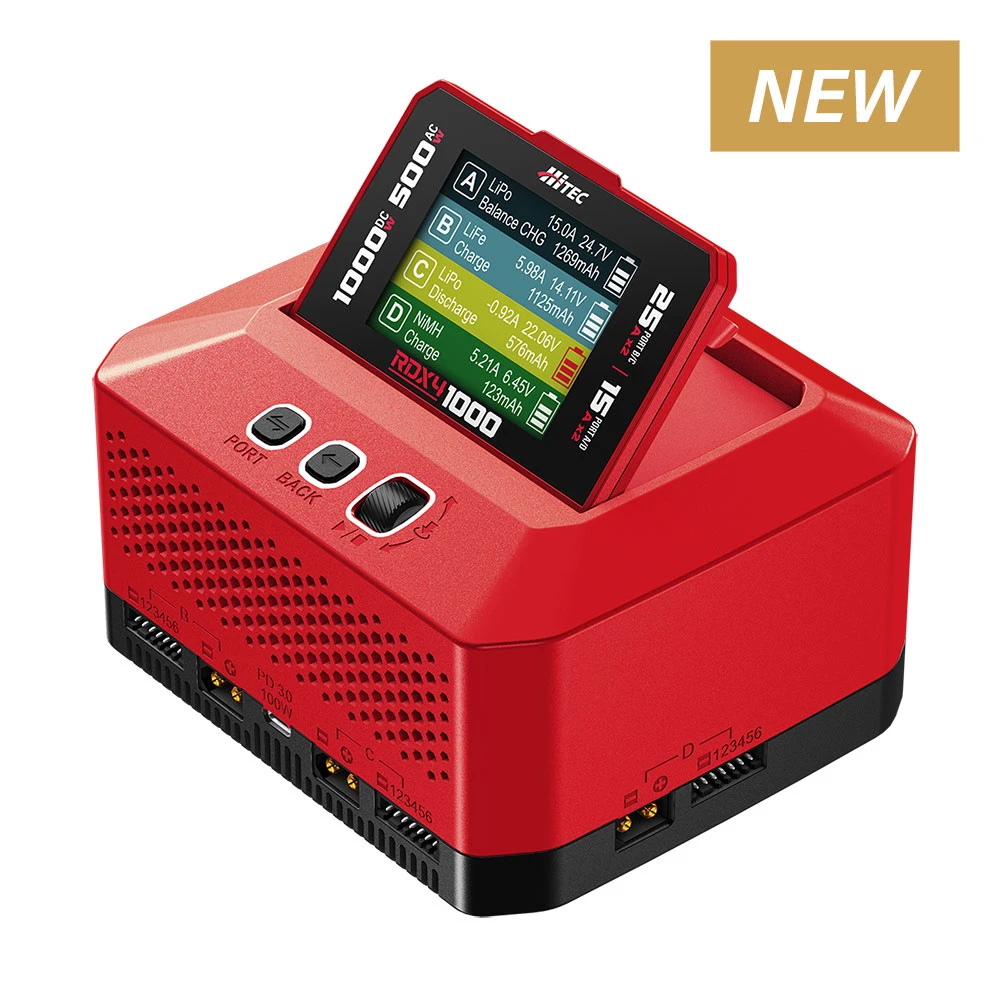

The RDX4 1000 is a high-power four port AC/DC charger built for dedicated RC hobbyists who need to charge multiple battery packs quickly and efficiently. It delivers up to 500 watts from household AC power and up to 1000 watts from a 9–36V DC power supply. Four independent ports charge four batteries at once: Ports B and C deliver up to 25 amps (500W each on DC), while Ports A and D deliver up to 15 amps (250W each).
Connect any mix of LiPo, LiHV, LiFe and Li-ion packs from 1 to 6 cells, NiMH/NiCd packs up to 15 cells, or 3/6/12-cell lead-acid batteries. Lithium packs get Balance Charge, Charge, Storage and Discharge modes with an integrated individual-cell balancer, nickel packs get Re-Peak and charge/discharge cycling, and lead-acid batteries get dedicated AGM and Cold Charge programs. A flip-up backlit display keeps settings and charge status easy to read in challenging lighting, and reverse discharging on Ports B and C transfers energy from one battery into another, reducing wasted energy.
The RDX4 1000 also doubles as a power supply for pit gear like tire warmers (up to 30V @ 6A), and its 100W USB-C PD 3.0 port charges phones, tablets and other mobile devices. Battery resistance metering, terminal voltage control, capacity cut-off and a safety timer help you monitor pack health and charge with confidence, and firmware updates are handled through Hitec Charge Manager software.
Looking for a different setup? The original RDX4 offers four ports in a lighter 400W package, while the RDX2 1600 Duo delivers up to 32 amps per port for 8S packs. For DC operation, pick up the XT90 DC Input Charge Cable & Clips in our charging accessories, or browse all Hitec battery chargers to compare.
Key Features
- Quad Port Charging up to 25A x 2 / 15A x 2
- Reverse Discharging between Ports B & C
- Built-in 30V @ 6A Power Supply & USB-C PD Output

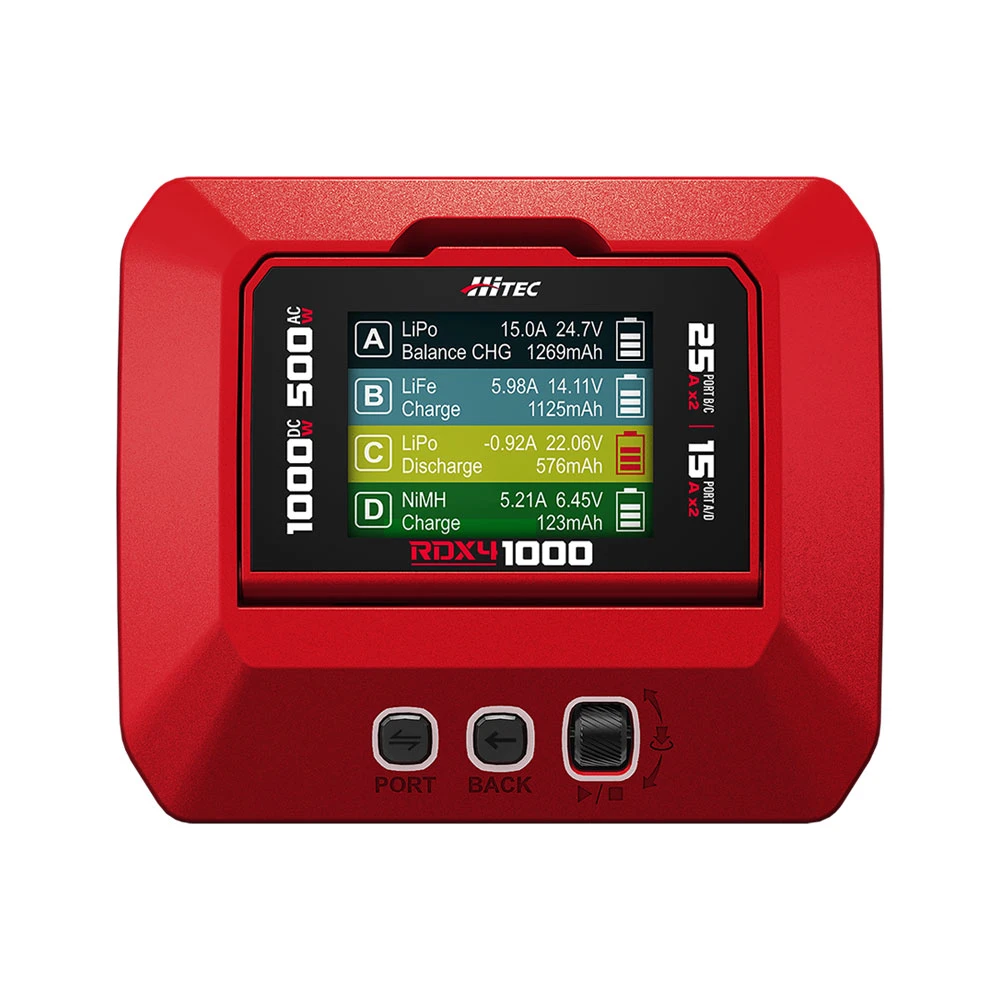

- Flip-Up Backlit Display
- Balance, Standard, Storage & Discharge Modes for All Lithium Chemistries
- Re-Peak & Delta-Peak Modes for NiMH/NiCd
- Battery Resistance Meter
- Terminal Voltage Control
- Capacity Cut-Off
- Smart Ventilation Fan
Technical Specifications
- 100V – 240V AC / 9V – 36V DC Operating Voltage Range
- LiPo, LiHV, LiFe & Li-ion Cell Count: 1-6 Cells
- NiCd/NiMH Cell Count: 1-15 Cells
- Pb Lead-Acid Based Cell Count: 3/6/12 Cells
- Charge Circuit Power: 500W AC / 1000W DC (Ports B & C: 500W, Ports A & D: 250W)
- Discharge Circuit Power: 10W
- PC Interface with Downloadable Software
- Dimensions: 5.75 x 4.84 x 3.46 in.
- Weight: 2.659 lbs
Hitec Charge Manager Software 1.15 for select RDX Series Chargers*
Charge Manager V1.15 ** (Updated January 2026)
*For use with chargers with internal USB output
**Note: PC USE ONLY. To program and save presets in Windows 10, you must run this software as administrator.
| NOTICE TO NON-UNITED STATES CUSTOMERS: Hitec can ship our entire line of chargers, charger parts and accessories to anywhere within the United States ONLY due to legal restrictions and liability issues. Hitec will fully refund all orders placed on our website containing shipping information associated with an address outside the United States. Please contact us directly for assistance and we apologize for any inconvenience. |
LIMITED WARRANTY
CHARGER Warranty: For a period of ONE YEAR or from the date of purchase, HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD USA, INC. option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
These warranties do not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities. These warranties only apply to the original purchaser of HITEC RCD USA, INC. products purchased and use of the products in the United States of America. Batteries, plastic cases and gears are not covered by these warranties.
THESE WARRANTIES ARE IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND WHETHER EXPRESS OR IMPLIED. REPAIR OR REPLACEMENT AS PROVIDED UNDER THESE WARRANTIES ARE THE EXCLUSIVE REMEDY. HITEC RCD USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE DURATION OF THESE WARRANTIES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. These warranties give you specific legal rights, and you may have other rights which vary from state to state.
Service and Repair
Customer Service and Repair Questions: If you have questions regarding the usage or service of Hitec products, please contact our Customer Service Department. To provide the best possible service, please have your product available during your call.
Phone: (858) 748-6948
Email: service@hitecrcd.com
For service or repair of your Hitec products follow the instructions below:
Print the Hitec Service Request Form
- Fill it out in its entirety, being as comprehensive as possible.
- Package your return just as it was packed when you purchased it.
- Include with it: The return form and, if claiming warranty work, your receipt showing date of purchase
Ship your return, using a prepaid, traceable method to our new address:
Hitec Customer Service Center
9320 Hazard Way, Suite D
San Diego CA, 92123
- Once received, if an email address is provided, we will email a shipment notification with a reference number.
Use this number when referring to your repair. If you do not receive an email notification within 10 working days from the day you shipped your return, you may want to contact the service department. - Our goal is to ship your repair back out within 7-10 business days from the day we get it.
Unfortunately we cannot always accomplish this due to seasonal fluctuations in our workload. You can always contact our service department at service@hitecrcd.com or call (858) 748-6948 to find out just how long the current turnaround time is. - If you are from a country that is outside North and South America, please contact the Hitec distributor in your country for service.
- Hitec is not responsible for any customs duties or freight costs incurred when shipping product in for repair. All C.O.D. packages will be refused.
